Calcium in PDB 9ga7: The Crystal Structure of Human Annexin A4 Derived From Crystal Grown at 4 Mm CACL2 and Retro-Soaking

The structure of The Crystal Structure of Human Annexin A4 Derived From Crystal Grown at 4 Mm CACL2 and Retro-Soaking, PDB code: 9ga7 was solved by L.Vitagliano, G.Barra, O.Ghilardi, S.Di Micco, M.C.Scala, M.Sala, P.Campiglia, G.Bifulco, A.Ruggiero, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	65.08 / 1.45
Space group	P 1 21 1
Cell size a, b, c (Å), α, β, γ (°)	58.384, 39.926, 65.904, 90, 99.09, 90
R / Rfree (%)	18.6 / 20.9

The binding sites of Calcium atom in the The Crystal Structure of Human Annexin A4 Derived From Crystal Grown at 4 Mm CACL2 and Retro-Soaking (pdb code 9ga7). This binding sites where shown within 5.0 Angstroms radius around Calcium atom.
In total only one binding site of Calcium was determined in the The Crystal Structure of Human Annexin A4 Derived From Crystal Grown at 4 Mm CACL2 and Retro-Soaking, PDB code: 9ga7:

Calcium binding site 1 out of 1 in the The Crystal Structure of Human Annexin A4 Derived From Crystal Grown at 4 Mm CACL2 and Retro-Soaking

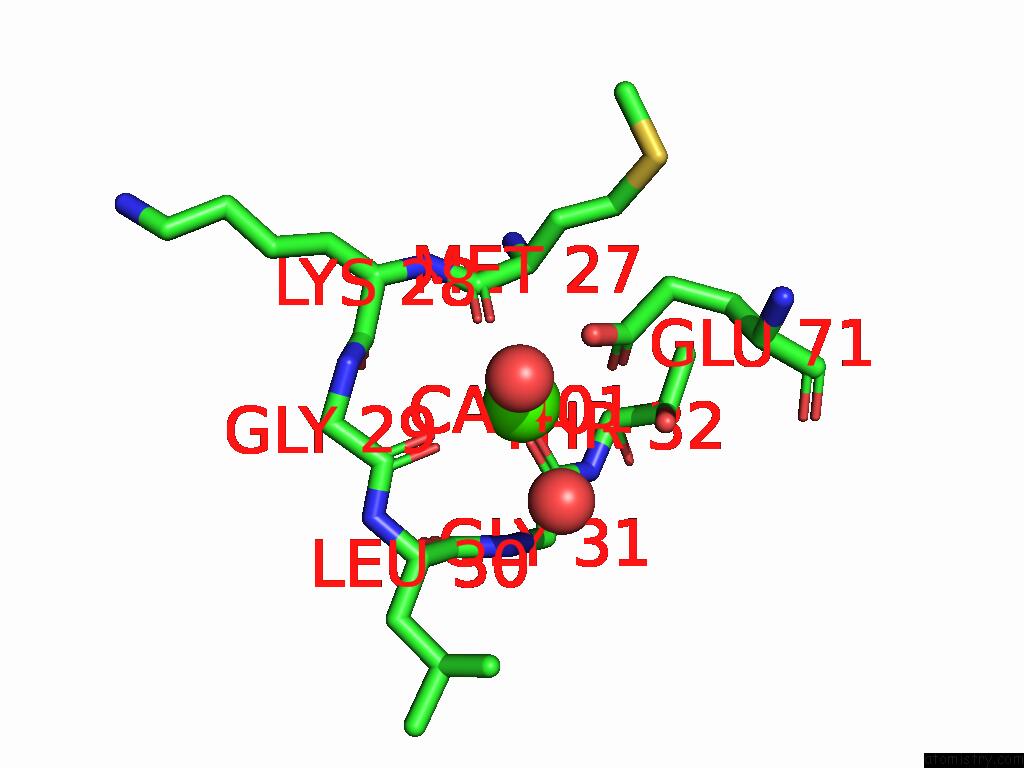

Mono view

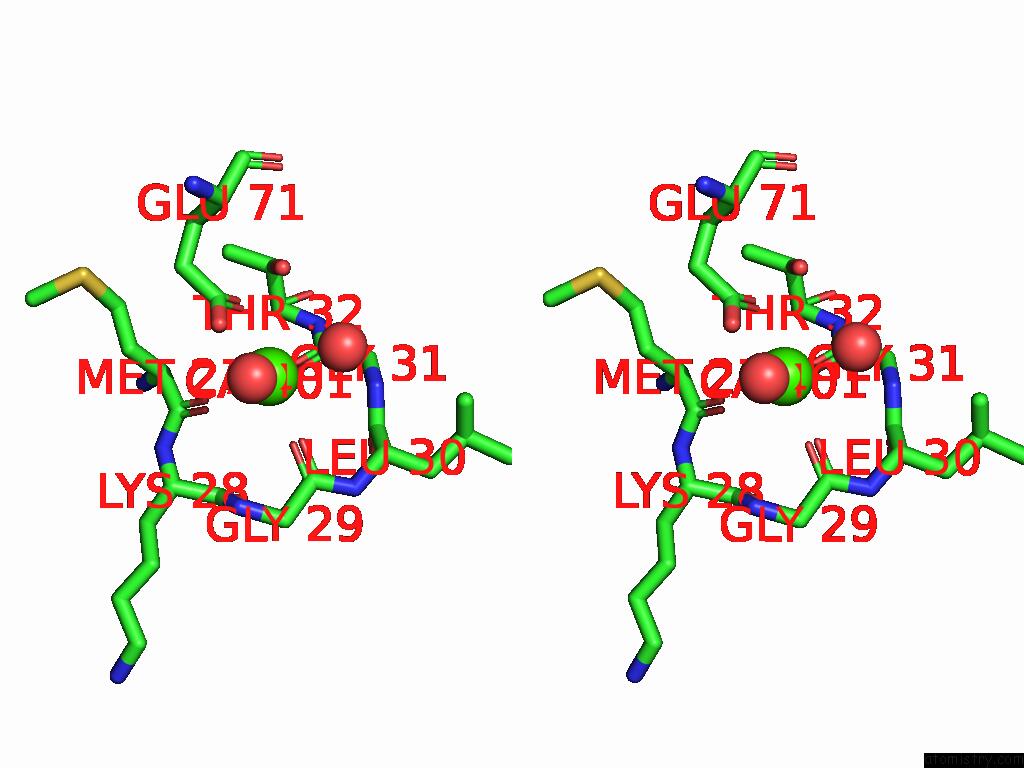

Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 1 of The Crystal Structure of Human Annexin A4 Derived From Crystal Grown at 4 Mm CACL2 and Retro-Soaking within 5.0Å range: probe atom residue distance (Å) B Occ A:Ca401 b:22.0 occ:1.00 O A:HOH502 2.2 34.4 1.0 O A:MET27 2.3 14.3 1.0 O A:GLY29 2.3 19.0 1.0 O A:GLY31 2.4 15.1 1.0 OE1 A:GLU71 2.5 18.5 1.0 O A:HOH568 2.6 23.9 1.0 OE2 A:GLU71 2.8 26.1 1.0 CD A:GLU71 3.0 19.1 1.0 C A:MET27 3.3 14.3 1.0 C A:GLY31 3.4 15.0 1.0 C A:GLY29 3.5 19.4 1.0 N A:GLY31 3.7 13.8 1.0 CA A:MET27 4.0 13.2 1.0 C A:LEU30 4.1 15.5 1.0 CA A:GLY31 4.1 14.4 1.0 OG1 A:THR32 4.1 16.9 1.0 N A:GLY29 4.2 18.8 1.0 C A:LYS28 4.2 17.4 1.0 CA A:LEU30 4.3 15.9 1.0 N A:LEU30 4.4 16.5 1.0 N A:LYS28 4.4 16.0 1.0 CG A:GLU71 4.4 25.5 1.0 N A:THR32 4.5 14.4 1.0 CA A:GLY29 4.5 19.8 1.0 O A:LYS28 4.6 19.1 1.0 CB A:MET27 4.7 13.6 1.0 CA A:LYS28 4.7 17.2 1.0 O A:LEU30 4.7 15.6 1.0 CA A:THR32 4.8 14.4 1.0

S.Di Micco, M.C.Scala, M.Sala, G.Barra, O.Ghilardi, P.Campiglia, G.Bifulco, L.Vitagliano, A.Ruggiero. Computational, Crystallographic, and Biophysical Characterizations Provide Insights Into Calcium and Phosphate Binding By Human Annexin A4. Int.J.Biol.Macromol. V. 308 42600 2025.
ISSN: ISSN 0141-8130
PubMed: 40157693
DOI: 10.1016/J.IJBIOMAC.2025.142600
