Calcium in PDB 9kyf: Crystal Structure of E.Coli AC4C Amidohydrolase Yqfb

All present enzymatic activity of Crystal Structure of E.Coli AC4C Amidohydrolase Yqfb:
3.5.1.135;

The structure of Crystal Structure of E.Coli AC4C Amidohydrolase Yqfb, PDB code: 9kyf was solved by W.T.Guo, B.X.Wu, C.Y.Meng, Y.Wen, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	29.40 / 1.55
Space group	C 1 2 1
Cell size a, b, c (Å), α, β, γ (°)	108.306, 30.55, 61.949, 90, 93.9, 90
R / Rfree (%)	20.1 / 24.5

The binding sites of Calcium atom in the Crystal Structure of E.Coli AC4C Amidohydrolase Yqfb (pdb code 9kyf). This binding sites where shown within 5.0 Angstroms radius around Calcium atom.
In total only one binding site of Calcium was determined in the Crystal Structure of E.Coli AC4C Amidohydrolase Yqfb, PDB code: 9kyf:

Calcium binding site 1 out of 1 in the Crystal Structure of E.Coli AC4C Amidohydrolase Yqfb

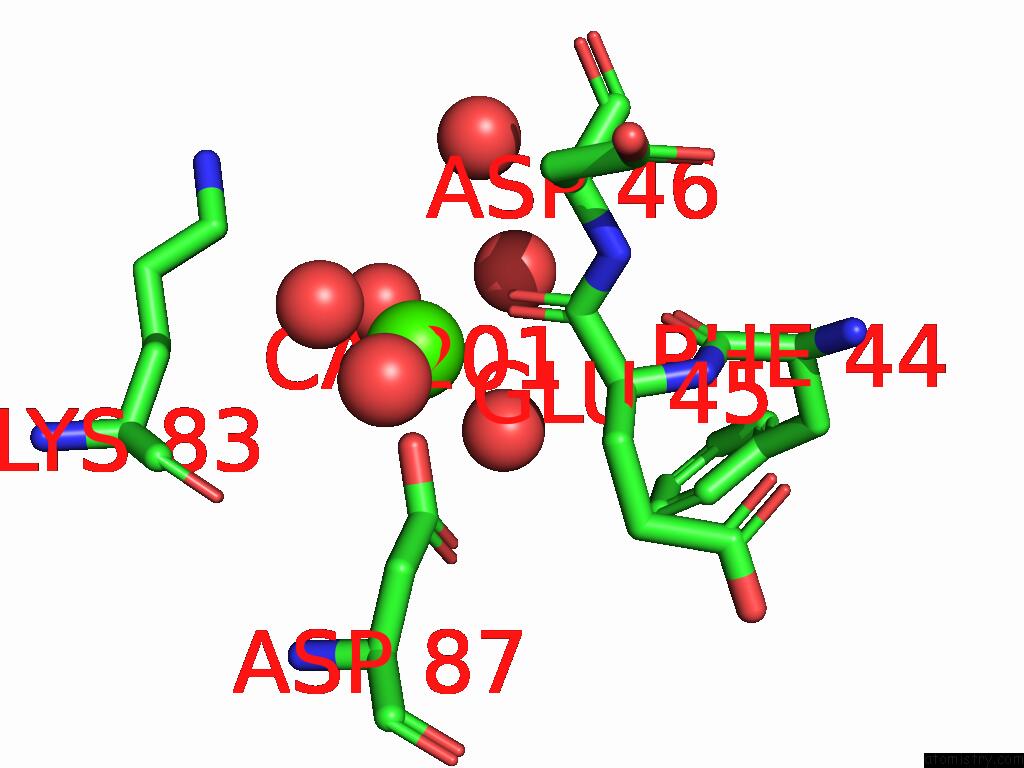

Mono view

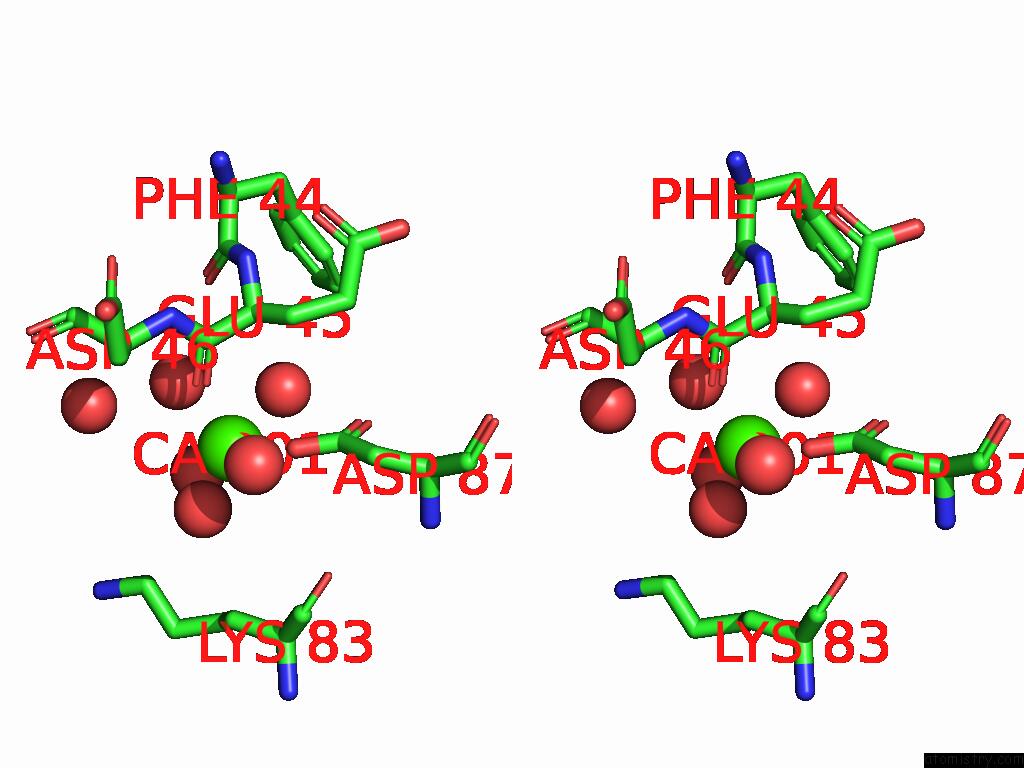

Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 1 of Crystal Structure of E.Coli AC4C Amidohydrolase Yqfb within 5.0Å range: probe atom residue distance (Å) B Occ A:Ca201 b:18.5 occ:1.00 O B:GLU45 2.2 20.8 1.0 O A:HOH386 2.3 25.1 1.0 OD2 A:ASP87 2.3 16.8 1.0 O B:HOH354 2.4 26.9 1.0 O A:HOH383 2.5 18.8 1.0 O B:HOH208 2.6 30.5 1.0 CG A:ASP87 3.4 13.8 1.0 C B:GLU45 3.4 20.7 1.0 OD1 A:ASP87 3.7 17.4 1.0 CA B:GLU45 4.0 17.7 1.0 O A:HOH348 4.1 24.5 1.0 O B:HOH316 4.2 34.2 1.0 N B:ASP46 4.5 22.7 1.0 O A:LYS83 4.5 13.4 1.0 CB B:GLU45 4.6 18.6 1.0 CB A:ASP87 4.7 14.9 1.0 CB A:LYS83 4.7 11.6 1.0 CA B:ASP46 4.7 22.8 1.0 O B:PHE44 4.9 20.5 1.0

W.T.Guo, B.X.Wu, C.Y.Meng, Y.Wen. Crystal Structure of E.Coli AC4C Amidohydrolase Yqfb To Be Published.
