Calcium in PDB 9o4n: Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1)

Enzymatic activity of Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1)

All present enzymatic activity of Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1):
3.2.1.18;

Calcium Binding Sites:

The binding sites of Calcium atom in the Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1) (pdb code 9o4n). This binding sites where shown within 5.0 Angstroms radius around Calcium atom.
In total 9 binding sites of Calcium where determined in the Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1), PDB code: 9o4n:
Jump to Calcium binding site number: 1; 2; 3; 4; 5; 6; 7; 8; 9;

Calcium binding site 1 out of 9 in 9o4n

Go back to Calcium Binding Sites List in 9o4n
Calcium binding site 1 out of 9 in the Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1)


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 1 of Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1) within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Ca501

b:80.9
occ:1.00
 O A:GLY345 2.3 94.0 1.0
O A:ASP293 2.3 88.3 1.0
O A:GLY297 2.3 87.0 1.0
OD2 A:ASP324 2.9 83.5 1.0
CG A:ASP324 3.3 87.7 1.0
C A:GLY345 3.4 82.7 1.0
CA A:GLY348 3.5 85.7 1.0
C A:GLY297 3.5 73.0 1.0
C A:ASP293 3.5 87.3 1.0
N A:GLY348 3.7 82.8 1.0
OD1 A:ASP324 3.9 94.3 1.0
CB A:ASP324 3.9 81.0 1.0
CA A:GLY345 4.2 74.0 1.0
O A:ASN344 4.3 94.6 1.0
N A:SER298 4.3 72.4 1.0
CA A:SER298 4.3 80.7 1.0
C A:ALA346 4.3 82.8 1.0
O A:ALA346 4.4 89.5 1.0
N A:ALA346 4.4 78.4 1.0
N A:ASN294 4.4 84.9 1.0
C A:ASN347 4.4 96.4 1.0
CA A:ASP293 4.5 81.4 1.0
CA A:ASN294 4.5 86.0 1.0
CA A:GLY297 4.5 73.3 1.0
N A:GLY297 4.5 80.7 1.0
CB A:ASP293 4.5 82.6 1.0
CA A:ALA346 4.6 83.5 1.0
N A:ASP293 4.7 84.3 1.0
N A:ASN347 4.7 82.9 1.0
O A:ASN347 4.9 108.9 1.0
O A:PRO326 4.9 98.6 1.0
CG A:PRO326 4.9 89.7 1.0
C A:GLY348 5.0 86.2 1.0

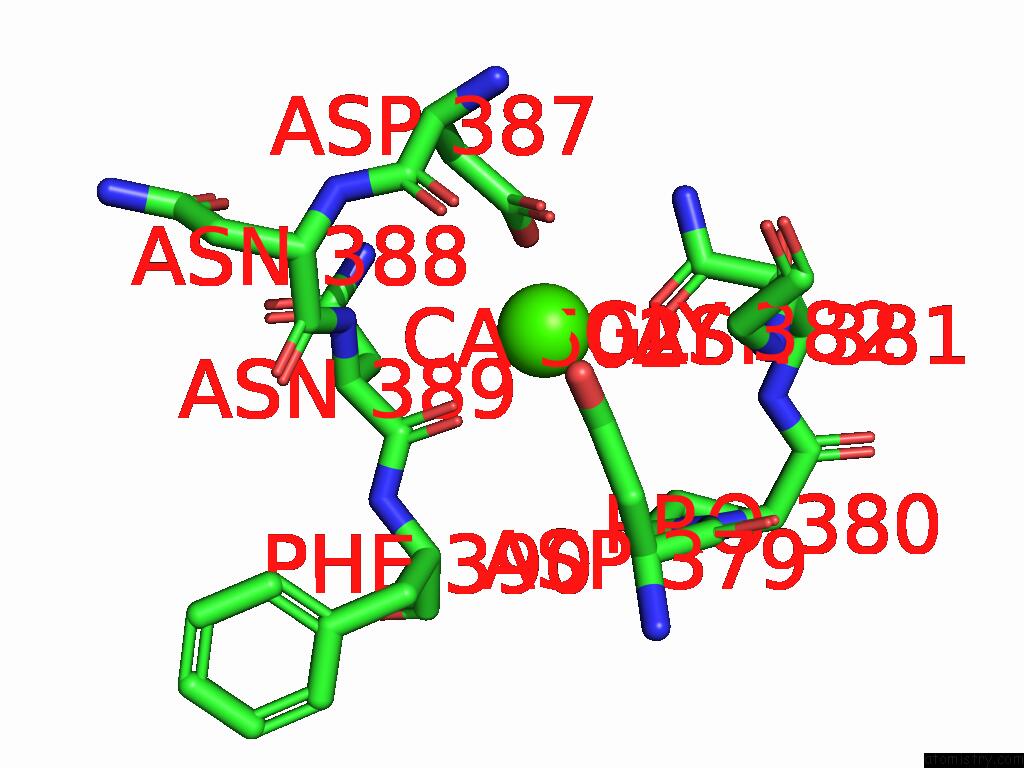

Calcium binding site 2 out of 9 in 9o4n

Go back to Calcium Binding Sites List in 9o4n
Calcium binding site 2 out of 9 in the Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1)


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 2 of Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1) within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Ca502

b:92.3
occ:1.00
 OD1 A:ASP379 2.3 93.9 1.0
OD1 A:ASP387 2.3 112.3 1.0
O A:ASN389 2.4 103.2 1.0
OD1 A:ASN381 2.6 91.6 1.0
OD2 A:ASP387 2.6 109.1 1.0
CG A:ASP387 2.7 108.1 1.0
CG A:ASP379 3.1 89.9 1.0
OD2 A:ASP379 3.3 93.0 1.0
C A:ASN389 3.4 97.6 1.0
CG A:ASN381 3.6 89.3 1.0
O A:ASP387 3.8 105.6 1.0
N A:ASN389 3.9 97.0 1.0
CB A:ASP387 4.0 102.0 1.0
ND2 A:ASN381 4.0 94.2 1.0
CA A:ASN389 4.0 94.0 1.0
CB A:ASN389 4.1 94.4 1.0
C A:ASP387 4.2 104.0 1.0
CB A:ASP379 4.5 81.1 1.0
N A:PHE390 4.5 92.5 1.0
N A:ASN381 4.6 87.7 1.0
CA A:ASP387 4.6 101.2 1.0
CD A:PRO380 4.7 87.4 1.0
C A:ASN388 4.7 104.3 1.0
C A:ASN381 4.7 89.3 1.0
N A:GLY382 4.8 88.4 1.0
CB A:ASN381 4.8 87.2 1.0
CA A:PHE390 4.9 89.1 1.0
N A:ASN388 4.9 105.1 1.0
CA A:ASP379 4.9 83.3 1.0
N A:ASP387 5.0 104.5 1.0
CA A:ASN381 5.0 86.6 1.0
CG A:PRO380 5.0 89.9 1.0
N A:PRO380 5.0 82.7 1.0
ND2 A:ASN389 5.0 102.8 1.0

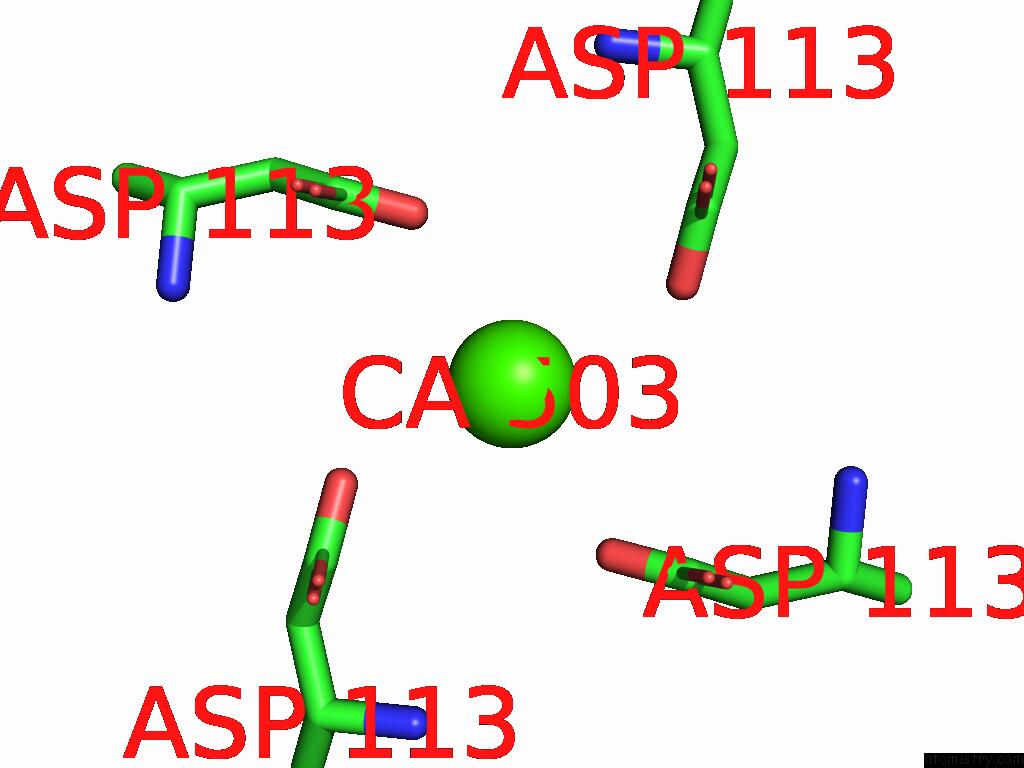

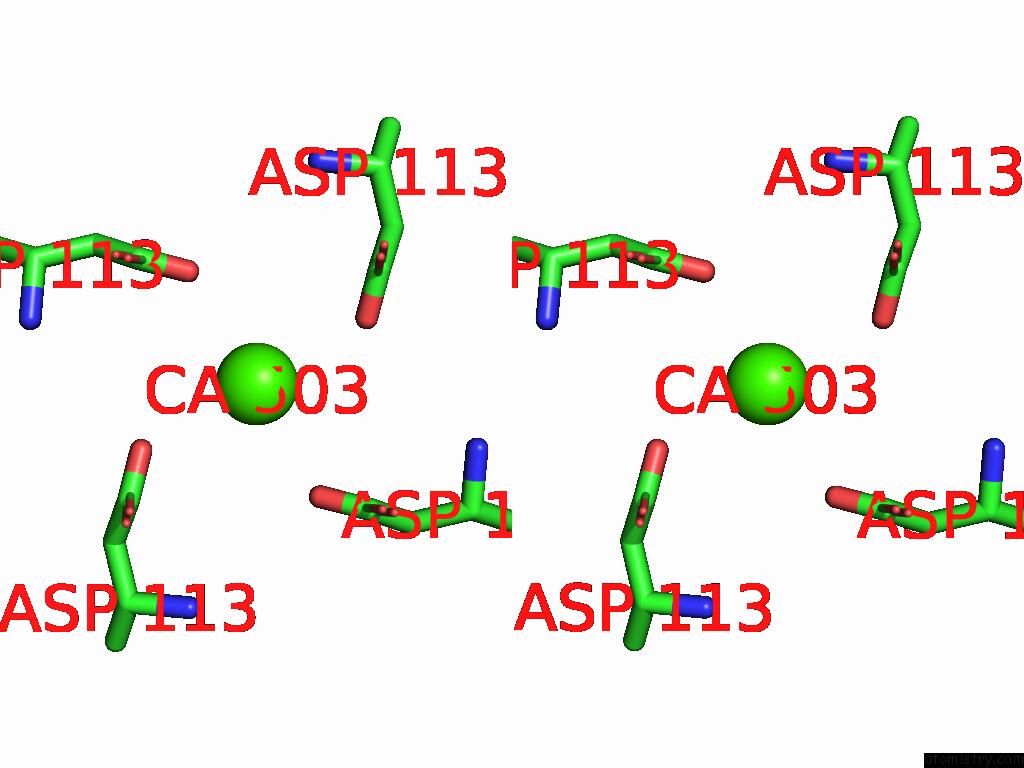

Calcium binding site 3 out of 9 in 9o4n

Go back to Calcium Binding Sites List in 9o4n
Calcium binding site 3 out of 9 in the Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1)


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 3 of Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1) within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Ca503

b:30.0
occ:1.00
 OD2 B:ASP113 4.4 94.8 1.0
OD2 C:ASP113 4.4 94.8 1.0
OD2 A:ASP113 4.4 94.8 1.0
OD2 D:ASP113 4.4 94.8 1.0
OD1 B:ASP113 4.5 88.0 1.0
OD1 C:ASP113 4.5 88.0 1.0
OD1 A:ASP113 4.5 88.0 1.0
OD1 D:ASP113 4.5 88.0 1.0
CG A:ASP113 4.8 90.5 1.0
CG B:ASP113 4.8 90.5 1.0
CG C:ASP113 4.8 90.5 1.0
CG D:ASP113 4.8 90.5 1.0

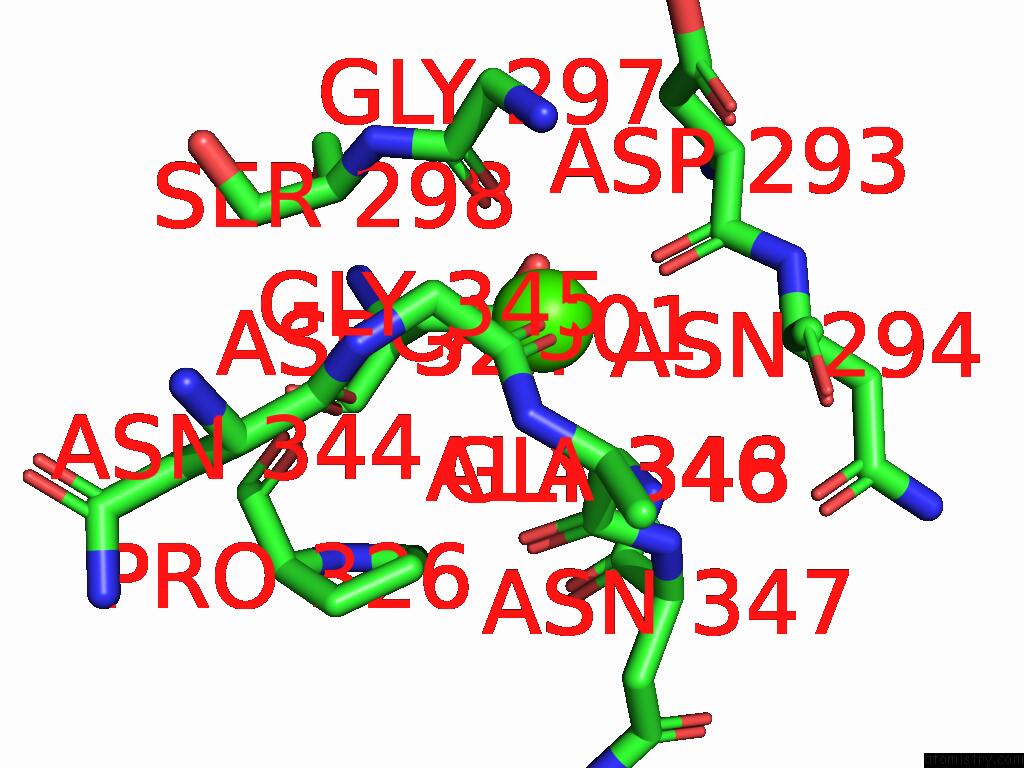

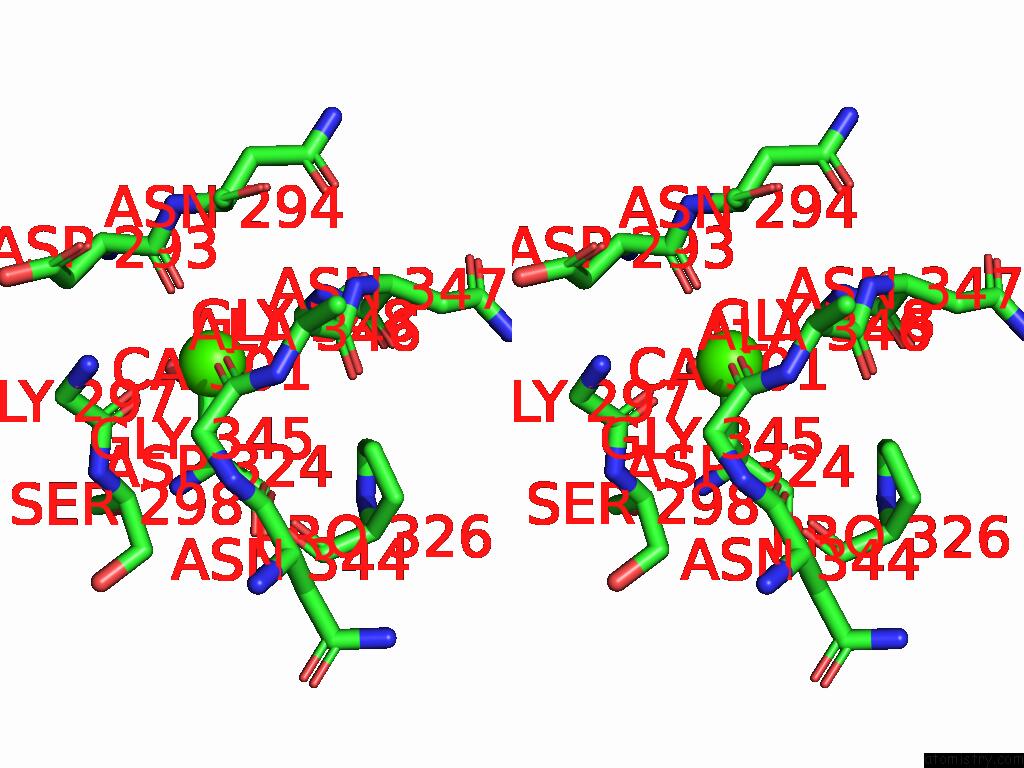

Calcium binding site 4 out of 9 in 9o4n

Go back to Calcium Binding Sites List in 9o4n
Calcium binding site 4 out of 9 in the Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1)


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 4 of Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1) within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Ca501

b:80.9
occ:1.00
 O B:GLY345 2.3 94.0 1.0
O B:ASP293 2.3 88.3 1.0
O B:GLY297 2.3 87.0 1.0
OD2 B:ASP324 2.9 83.5 1.0
CG B:ASP324 3.3 87.7 1.0
C B:GLY345 3.4 82.7 1.0
CA B:GLY348 3.5 85.7 1.0
C B:GLY297 3.5 73.0 1.0
C B:ASP293 3.5 87.3 1.0
N B:GLY348 3.7 82.8 1.0
OD1 B:ASP324 3.9 94.3 1.0
CB B:ASP324 3.9 81.0 1.0
CA B:GLY345 4.2 74.0 1.0
O B:ASN344 4.3 94.6 1.0
N B:SER298 4.3 72.4 1.0
CA B:SER298 4.3 80.7 1.0
C B:ALA346 4.3 82.8 1.0
O B:ALA346 4.4 89.5 1.0
N B:ALA346 4.4 78.4 1.0
N B:ASN294 4.4 84.9 1.0
C B:ASN347 4.4 96.4 1.0
CA B:ASP293 4.5 81.4 1.0
CA B:ASN294 4.5 86.0 1.0
CA B:GLY297 4.5 73.3 1.0
N B:GLY297 4.5 80.7 1.0
CB B:ASP293 4.5 82.6 1.0
CA B:ALA346 4.6 83.5 1.0
N B:ASP293 4.7 84.3 1.0
N B:ASN347 4.7 82.9 1.0
O B:ASN347 4.9 108.9 1.0
O B:PRO326 4.9 98.6 1.0
CG B:PRO326 4.9 89.7 1.0
C B:GLY348 5.0 86.2 1.0

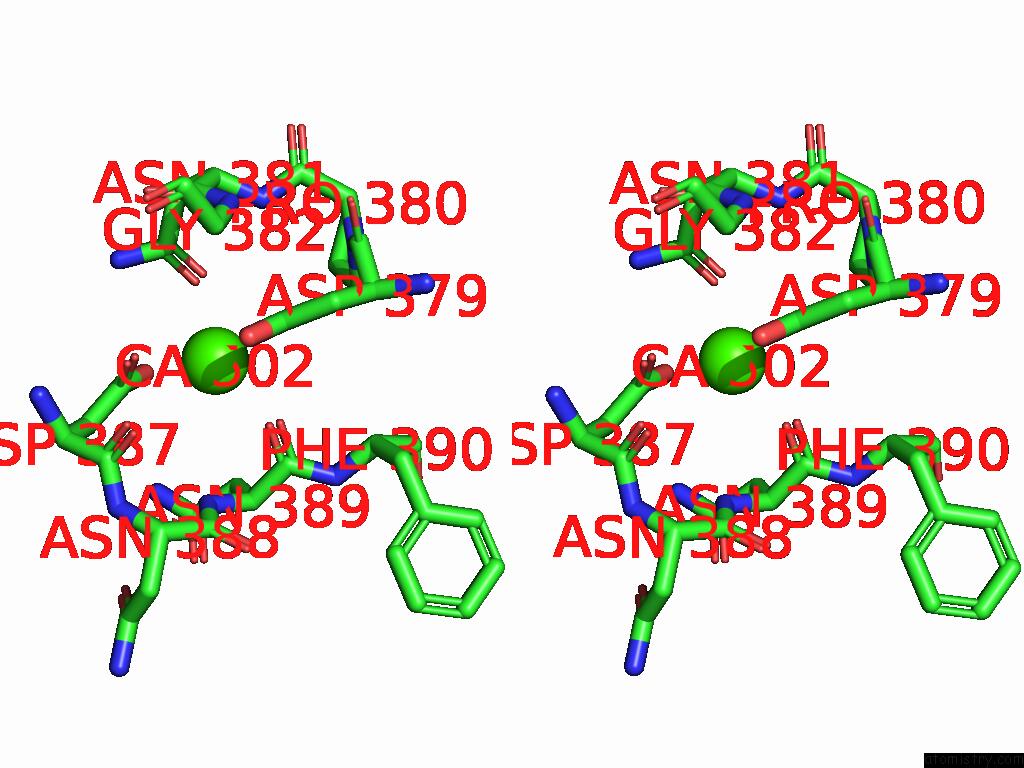

Calcium binding site 5 out of 9 in 9o4n

Go back to Calcium Binding Sites List in 9o4n
Calcium binding site 5 out of 9 in the Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1)


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 5 of Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1) within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Ca502

b:92.3
occ:1.00
 OD1 B:ASP379 2.3 93.9 1.0
OD1 B:ASP387 2.3 112.3 1.0
O B:ASN389 2.4 103.2 1.0
OD1 B:ASN381 2.6 91.6 1.0
OD2 B:ASP387 2.6 109.1 1.0
CG B:ASP387 2.7 108.1 1.0
CG B:ASP379 3.1 89.9 1.0
OD2 B:ASP379 3.3 93.0 1.0
C B:ASN389 3.4 97.6 1.0
CG B:ASN381 3.6 89.3 1.0
O B:ASP387 3.8 105.6 1.0
N B:ASN389 3.9 97.0 1.0
CB B:ASP387 4.0 102.0 1.0
ND2 B:ASN381 4.0 94.2 1.0
CA B:ASN389 4.0 94.0 1.0
CB B:ASN389 4.1 94.4 1.0
C B:ASP387 4.2 104.0 1.0
CB B:ASP379 4.5 81.1 1.0
N B:PHE390 4.5 92.5 1.0
N B:ASN381 4.6 87.7 1.0
CA B:ASP387 4.6 101.2 1.0
CD B:PRO380 4.7 87.4 1.0
C B:ASN388 4.7 104.3 1.0
C B:ASN381 4.7 89.3 1.0
N B:GLY382 4.8 88.4 1.0
CB B:ASN381 4.8 87.2 1.0
CA B:PHE390 4.9 89.1 1.0
N B:ASN388 4.9 105.1 1.0
CA B:ASP379 4.9 83.3 1.0
N B:ASP387 5.0 104.5 1.0
CA B:ASN381 5.0 86.6 1.0
CG B:PRO380 5.0 89.9 1.0
N B:PRO380 5.0 82.7 1.0
ND2 B:ASN389 5.0 102.8 1.0

Calcium binding site 6 out of 9 in 9o4n

Go back to Calcium Binding Sites List in 9o4n
Calcium binding site 6 out of 9 in the Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1)


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 6 of Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1) within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Ca501

b:80.9
occ:1.00
 O C:GLY345 2.3 94.0 1.0
O C:ASP293 2.3 88.3 1.0
O C:GLY297 2.3 87.0 1.0
OD2 C:ASP324 2.9 83.5 1.0
CG C:ASP324 3.3 87.7 1.0
C C:GLY345 3.4 82.7 1.0
CA C:GLY348 3.5 85.7 1.0
C C:GLY297 3.5 73.0 1.0
C C:ASP293 3.5 87.3 1.0
N C:GLY348 3.7 82.8 1.0
OD1 C:ASP324 3.9 94.3 1.0
CB C:ASP324 3.9 81.0 1.0
CA C:GLY345 4.2 74.0 1.0
O C:ASN344 4.3 94.6 1.0
N C:SER298 4.3 72.4 1.0
CA C:SER298 4.3 80.7 1.0
C C:ALA346 4.3 82.8 1.0
O C:ALA346 4.4 89.5 1.0
N C:ALA346 4.4 78.4 1.0
N C:ASN294 4.4 84.9 1.0
C C:ASN347 4.4 96.4 1.0
CA C:ASP293 4.5 81.4 1.0
CA C:ASN294 4.5 86.0 1.0
CA C:GLY297 4.5 73.3 1.0
N C:GLY297 4.5 80.7 1.0
CB C:ASP293 4.5 82.6 1.0
CA C:ALA346 4.6 83.5 1.0
N C:ASP293 4.7 84.3 1.0
N C:ASN347 4.7 82.9 1.0
O C:ASN347 4.9 108.9 1.0
O C:PRO326 4.9 98.6 1.0
CG C:PRO326 4.9 89.7 1.0
C C:GLY348 5.0 86.2 1.0

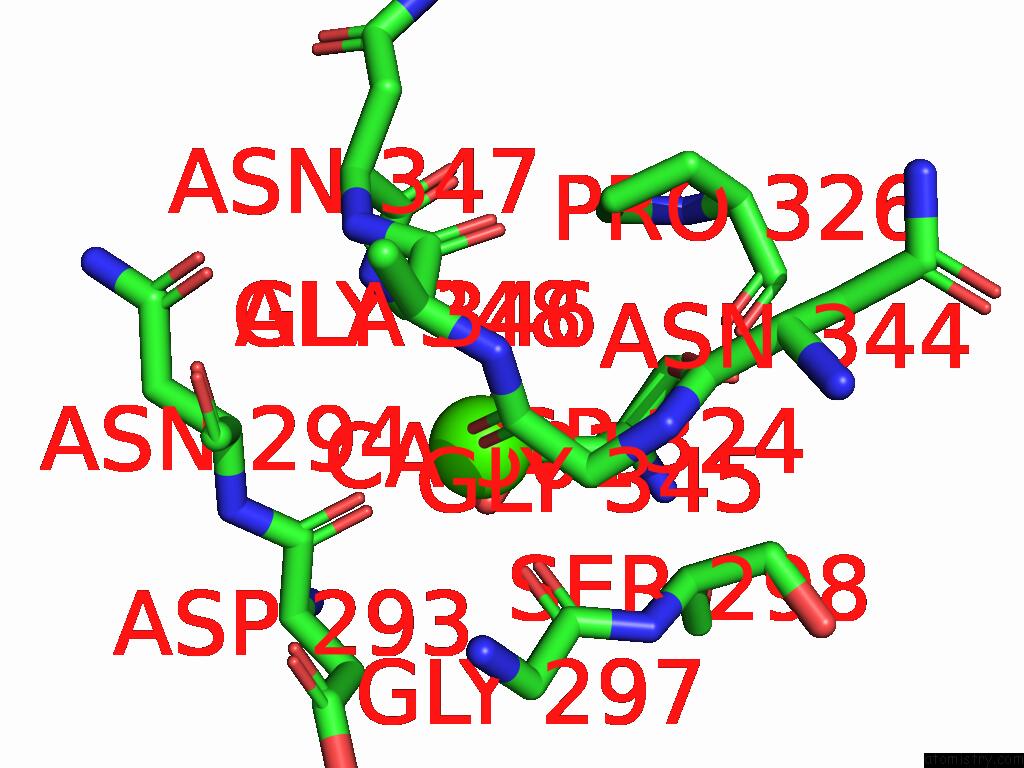

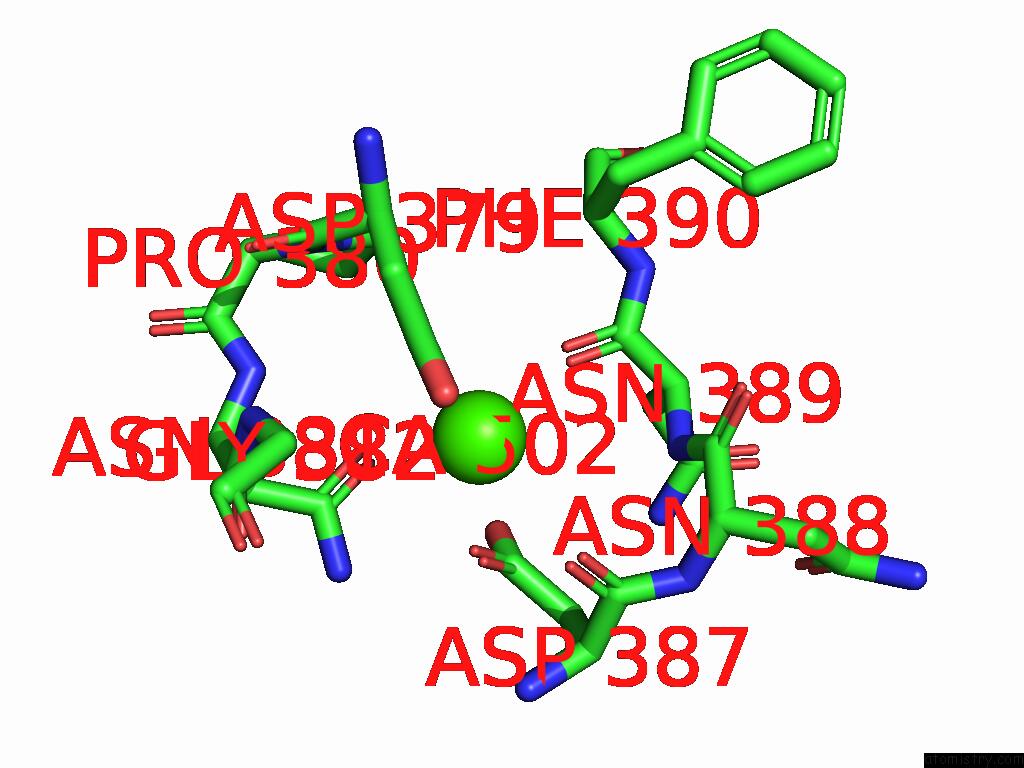

Calcium binding site 7 out of 9 in 9o4n

Go back to Calcium Binding Sites List in 9o4n
Calcium binding site 7 out of 9 in the Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1)


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 7 of Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1) within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Ca502

b:92.3
occ:1.00
 OD1 C:ASP379 2.3 93.9 1.0
OD1 C:ASP387 2.3 112.3 1.0
O C:ASN389 2.4 103.2 1.0
OD1 C:ASN381 2.6 91.6 1.0
OD2 C:ASP387 2.6 109.1 1.0
CG C:ASP387 2.7 108.1 1.0
CG C:ASP379 3.1 89.9 1.0
OD2 C:ASP379 3.3 93.0 1.0
C C:ASN389 3.4 97.6 1.0
CG C:ASN381 3.6 89.3 1.0
O C:ASP387 3.8 105.6 1.0
N C:ASN389 3.9 97.0 1.0
CB C:ASP387 4.0 102.0 1.0
ND2 C:ASN381 4.0 94.2 1.0
CA C:ASN389 4.0 94.0 1.0
CB C:ASN389 4.1 94.4 1.0
C C:ASP387 4.2 104.0 1.0
CB C:ASP379 4.5 81.1 1.0
N C:PHE390 4.5 92.5 1.0
N C:ASN381 4.6 87.7 1.0
CA C:ASP387 4.6 101.2 1.0
CD C:PRO380 4.7 87.4 1.0
C C:ASN388 4.7 104.3 1.0
C C:ASN381 4.7 89.3 1.0
N C:GLY382 4.8 88.4 1.0
CB C:ASN381 4.8 87.2 1.0
CA C:PHE390 4.9 89.1 1.0
N C:ASN388 4.9 105.1 1.0
CA C:ASP379 4.9 83.3 1.0
N C:ASP387 5.0 104.5 1.0
CA C:ASN381 5.0 86.6 1.0
CG C:PRO380 5.0 89.9 1.0
N C:PRO380 5.0 82.7 1.0
ND2 C:ASN389 5.0 102.8 1.0

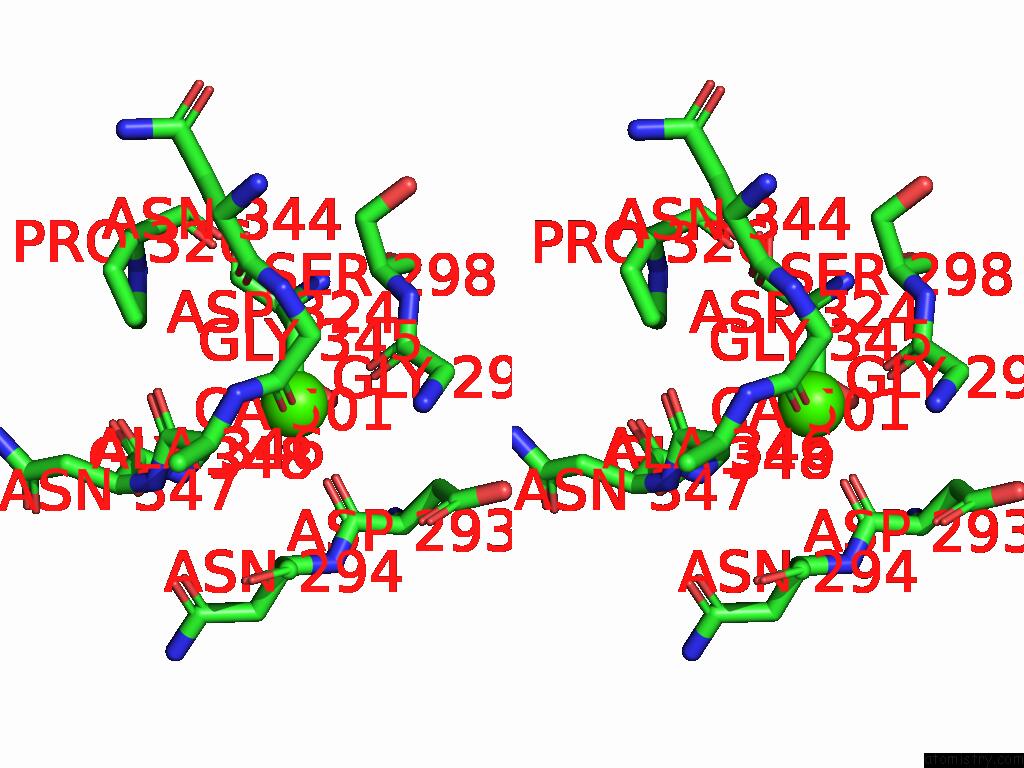

Calcium binding site 8 out of 9 in 9o4n

Go back to Calcium Binding Sites List in 9o4n
Calcium binding site 8 out of 9 in the Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1)


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 8 of Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1) within 5.0Å range:
probe atom residue distance (Å) B Occ
D:Ca501

b:80.9
occ:1.00
 O D:GLY345 2.3 94.0 1.0
O D:ASP293 2.3 88.3 1.0
O D:GLY297 2.3 87.0 1.0
OD2 D:ASP324 2.9 83.5 1.0
CG D:ASP324 3.3 87.7 1.0
C D:GLY345 3.4 82.7 1.0
CA D:GLY348 3.5 85.7 1.0
C D:GLY297 3.5 73.0 1.0
C D:ASP293 3.5 87.3 1.0
N D:GLY348 3.7 82.8 1.0
OD1 D:ASP324 3.9 94.3 1.0
CB D:ASP324 3.9 81.0 1.0
CA D:GLY345 4.2 74.0 1.0
O D:ASN344 4.3 94.6 1.0
N D:SER298 4.3 72.4 1.0
CA D:SER298 4.3 80.7 1.0
C D:ALA346 4.3 82.8 1.0
O D:ALA346 4.4 89.5 1.0
N D:ALA346 4.4 78.4 1.0
N D:ASN294 4.4 84.9 1.0
C D:ASN347 4.4 96.4 1.0
CA D:ASP293 4.5 81.4 1.0
CA D:ASN294 4.5 86.0 1.0
CA D:GLY297 4.5 73.3 1.0
N D:GLY297 4.5 80.7 1.0
CB D:ASP293 4.5 82.6 1.0
CA D:ALA346 4.6 83.5 1.0
N D:ASP293 4.7 84.3 1.0
N D:ASN347 4.7 82.9 1.0
O D:ASN347 4.9 108.9 1.0
O D:PRO326 4.9 98.6 1.0
CG D:PRO326 4.9 89.7 1.0
C D:GLY348 5.0 86.2 1.0

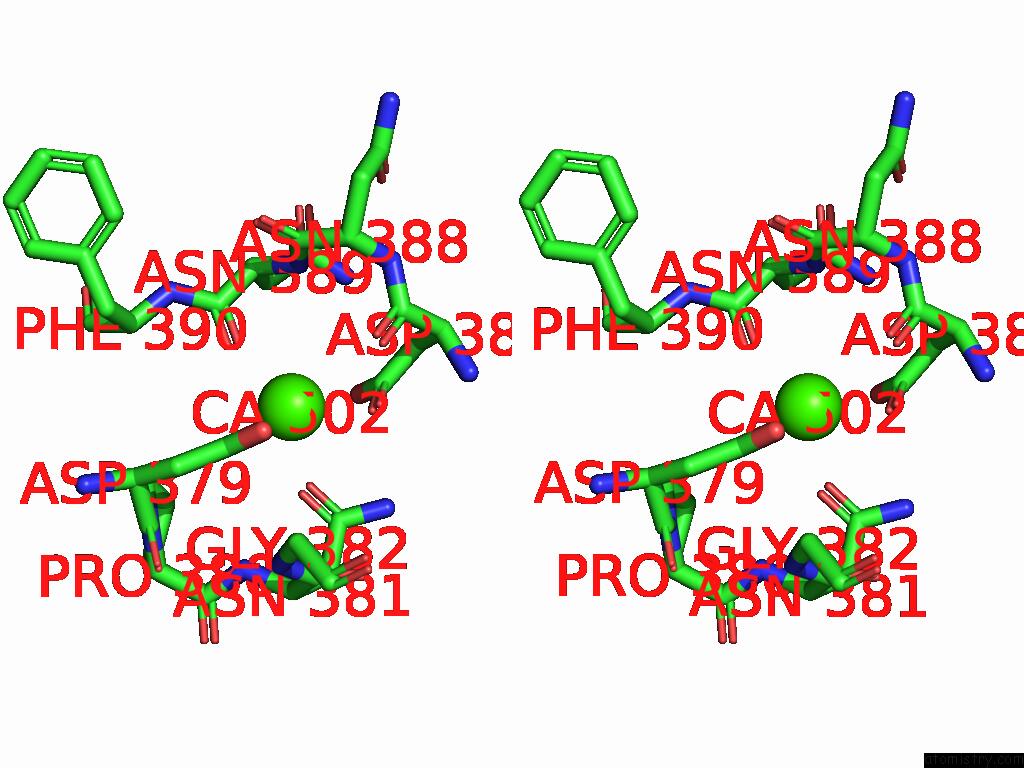

Calcium binding site 9 out of 9 in 9o4n

Go back to Calcium Binding Sites List in 9o4n
Calcium binding site 9 out of 9 in the Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1)


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 9 of Cryo-Em Structure of CR12042 Fab in Complex with Influenza Virus Neuraminidase From A/California/07/2009 (H1N1) within 5.0Å range:
probe atom residue distance (Å) B Occ
D:Ca502

b:92.3
occ:1.00
 OD1 D:ASP379 2.3 93.9 1.0
OD1 D:ASP387 2.3 112.3 1.0
O D:ASN389 2.4 103.2 1.0
OD1 D:ASN381 2.6 91.6 1.0
OD2 D:ASP387 2.6 109.1 1.0
CG D:ASP387 2.7 108.1 1.0
CG D:ASP379 3.1 89.9 1.0
OD2 D:ASP379 3.3 93.0 1.0
C D:ASN389 3.4 97.6 1.0
CG D:ASN381 3.6 89.3 1.0
O D:ASP387 3.8 105.6 1.0
N D:ASN389 3.9 97.0 1.0
CB D:ASP387 4.0 102.0 1.0
ND2 D:ASN381 4.0 94.2 1.0
CA D:ASN389 4.0 94.0 1.0
CB D:ASN389 4.1 94.4 1.0
C D:ASP387 4.2 104.0 1.0
CB D:ASP379 4.5 81.1 1.0
N D:PHE390 4.5 92.5 1.0
N D:ASN381 4.6 87.7 1.0
CA D:ASP387 4.6 101.2 1.0
CD D:PRO380 4.7 87.4 1.0
C D:ASN388 4.7 104.3 1.0
C D:ASN381 4.7 89.3 1.0
N D:GLY382 4.8 88.4 1.0
CB D:ASN381 4.8 87.2 1.0
CA D:PHE390 4.9 89.1 1.0
N D:ASN388 4.9 105.1 1.0
CA D:ASP379 4.9 83.3 1.0
N D:ASP387 5.0 104.5 1.0
CA D:ASN381 5.0 86.6 1.0
CG D:PRO380 5.0 89.9 1.0
N D:PRO380 5.0 82.7 1.0
ND2 D:ASN389 5.0 102.8 1.0

Reference:

G.Jo, S.Yamayoshi, K.M.Ma, O.Swanson, J.L.Torres, J.A.Ferguson, M.L.Fernandez-Quintero, J.Huang, J.Copps, A.J.Rodriguez, J.M.Steichen, Y.Kawaoka, J.Han, A.B.Ward. Structural Basis of Broad Protection Against Influenza Virus By Human Antibodies Targeting the Neuraminidase Active Site Via A Recurring Motif in Cdr H3. Nat Commun V. 16 7067 2025.
ISSN: ESSN 2041-1723
PubMed: 40750588
DOI: 10.1038/S41467-025-62174-2
Page generated: Fri Aug 22 22:38:55 2025

Last articles

Mn in 9LJU
Mn in 9LJW
Mn in 9LJS
Mn in 9LJR
Mn in 9LJT
Mn in 9LJV
Mg in 9UA2
Mg in 9R96
Mg in 9VM1
Mg in 9P01
© Copyright 2008-2020 by atomistry.com
Home   |    Site Map   |    Copyright   |    Contact us   |    Privacy
