Calcium in PDB 8rmy: Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02

Enzymatic activity of Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02

All present enzymatic activity of Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02:
2.3.2.13;

Protein crystallography data

The structure of Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02, PDB code: 8rmy was solved by J.E.Heggelund, L.M.Sollid, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 69.20 / 2.90
Space group I 1 2 1
Cell size a, b, c (Å), α, β, γ (°) 94.184, 260.191, 139.024, 90, 95.1, 90
R / Rfree (%) 19.5 / 24.3

Calcium Binding Sites:

The binding sites of Calcium atom in the Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02 (pdb code 8rmy). This binding sites where shown within 5.0 Angstroms radius around Calcium atom.
In total 6 binding sites of Calcium where determined in the Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02, PDB code: 8rmy:
Jump to Calcium binding site number: 1; 2; 3; 4; 5; 6;

Calcium binding site 1 out of 6 in 8rmy

Go back to Calcium Binding Sites List in 8rmy

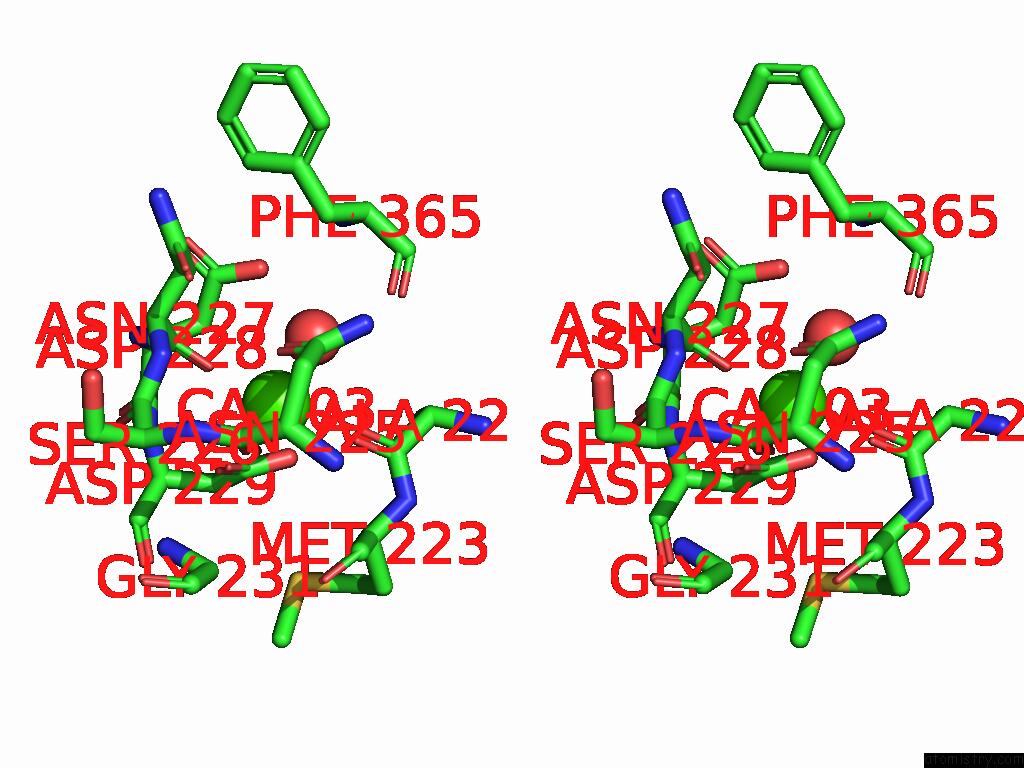

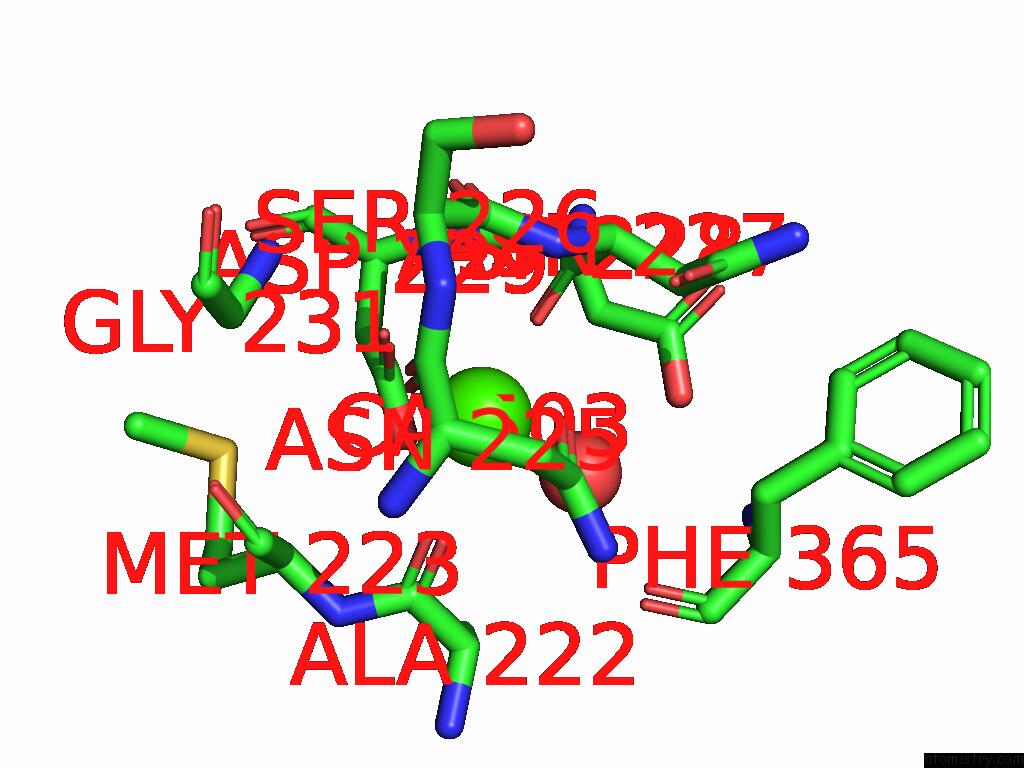

Calcium binding site 1 out of 6 in the Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 1 of Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02 within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Ca503

b:89.9
occ:1.00
 OD1 A:ASN225 2.2 103.6 1.0
O A:ASN225 2.3 92.0 1.0
O A:ASN227 2.3 122.1 1.0
O A:ALA222 2.4 91.0 1.0
OD1 A:ASP229 2.4 93.2 1.0
O A:HOH604 2.6 61.8 1.0
OD2 A:ASP229 2.7 90.5 1.0
CG A:ASP229 2.9 91.3 1.0
CG A:ASN225 3.2 91.7 1.0
C A:ASN225 3.2 102.1 1.0
C A:ASN227 3.4 106.4 1.0
C A:ALA222 3.4 90.2 1.0
N A:ASN227 3.6 88.4 1.0
C A:SER226 3.8 90.9 1.0
ND2 A:ASN225 3.9 111.9 1.0
CA A:ASN227 4.0 103.8 1.0
CA A:ASN225 4.0 98.8 1.0
O A:SER226 4.1 90.1 1.0
N A:SER226 4.1 108.1 1.0
CB A:ASN225 4.2 95.0 1.0
N A:ASN225 4.2 76.8 1.0
CA A:ALA222 4.2 85.8 1.0
CB A:ASP229 4.3 118.4 1.0
N A:MET223 4.3 71.6 1.0
CA A:MET223 4.3 78.6 1.0
CB A:ASN227 4.4 88.9 1.0
O A:PHE365 4.4 88.1 1.0
CA A:SER226 4.5 97.7 1.0
N A:ASP229 4.5 72.6 1.0
N A:ASP228 4.6 101.8 1.0
OD2 A:ASP228 4.6 156.3 1.0
CB A:ALA222 4.6 71.1 1.0
C A:MET223 4.7 76.6 1.0
CB A:ASP228 4.7 106.3 1.0
N A:GLY231 4.8 103.7 1.0
CG A:ASP228 4.9 115.8 1.0
CA A:ASP229 4.9 83.2 1.0
CA A:GLY231 4.9 105.9 1.0

Calcium binding site 2 out of 6 in 8rmy

Go back to Calcium Binding Sites List in 8rmy

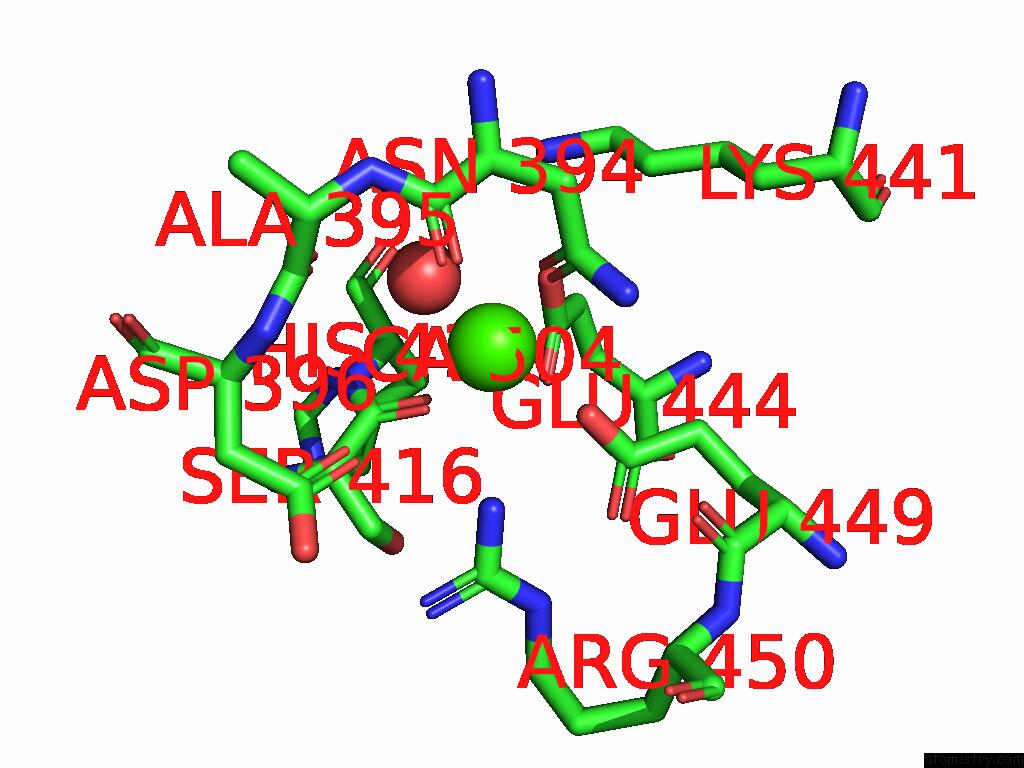

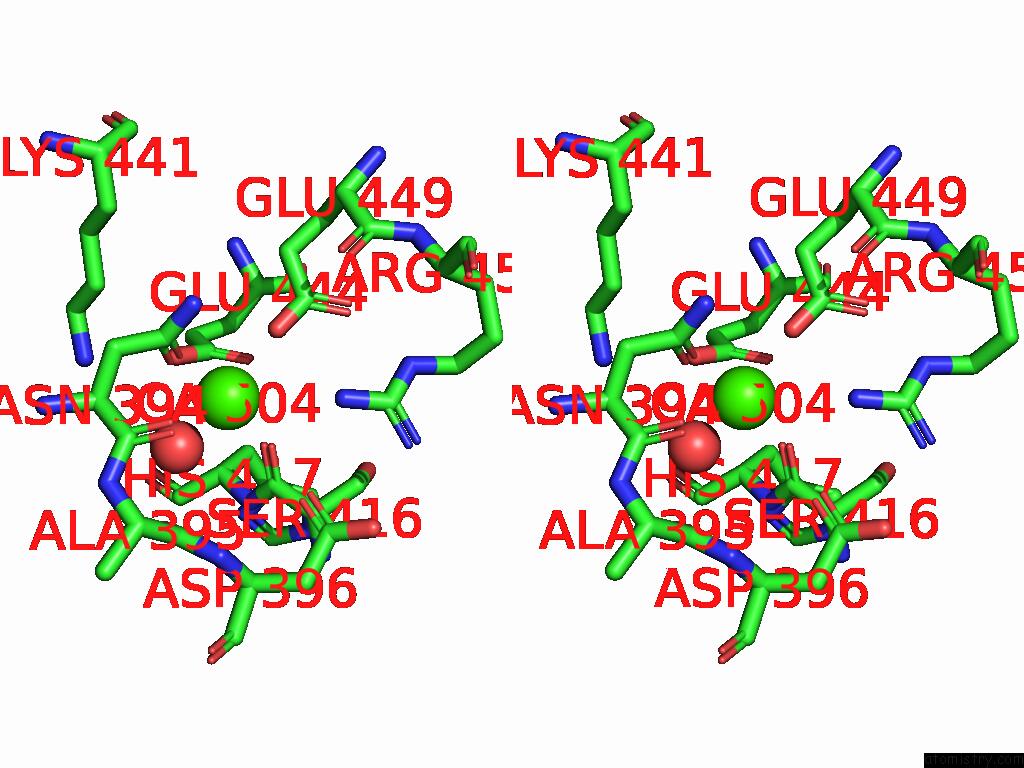

Calcium binding site 2 out of 6 in the Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 2 of Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02 within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Ca504

b:76.0
occ:1.00
 OD1 A:ASN394 2.2 76.2 1.0
O A:HOH606 2.2 72.9 1.0
O A:SER416 2.3 84.1 1.0
OE2 A:GLU449 2.4 73.8 1.0
OE2 A:GLU444 2.7 80.5 1.0
OE1 A:GLU444 2.8 75.2 1.0
CD A:GLU444 3.1 96.5 1.0
CG A:ASN394 3.3 112.7 1.0
C A:SER416 3.5 92.8 1.0
CD A:GLU449 3.6 100.3 1.0
NH2 A:ARG450 3.7 104.7 1.0
ND2 A:ASN394 3.9 112.1 1.0
O A:ASN394 4.1 98.7 1.0
OD1 A:ASP396 4.2 118.7 1.0
N A:HIS417 4.3 84.7 1.0
OE1 A:GLU449 4.3 100.0 1.0
O A:ALA395 4.3 129.9 1.0
CA A:HIS417 4.3 97.2 1.0
CA A:SER416 4.4 99.5 1.0
CA A:ASN394 4.4 85.3 1.0
CB A:ASN394 4.5 93.3 1.0
C A:ASN394 4.5 89.3 1.0
CG A:GLU449 4.6 102.7 1.0
NZ A:LYS441 4.7 74.5 1.0
CG A:GLU444 4.7 95.0 1.0
CB A:SER416 4.7 89.5 1.0
CZ A:ARG450 4.8 87.7 1.0

Calcium binding site 3 out of 6 in 8rmy

Go back to Calcium Binding Sites List in 8rmy

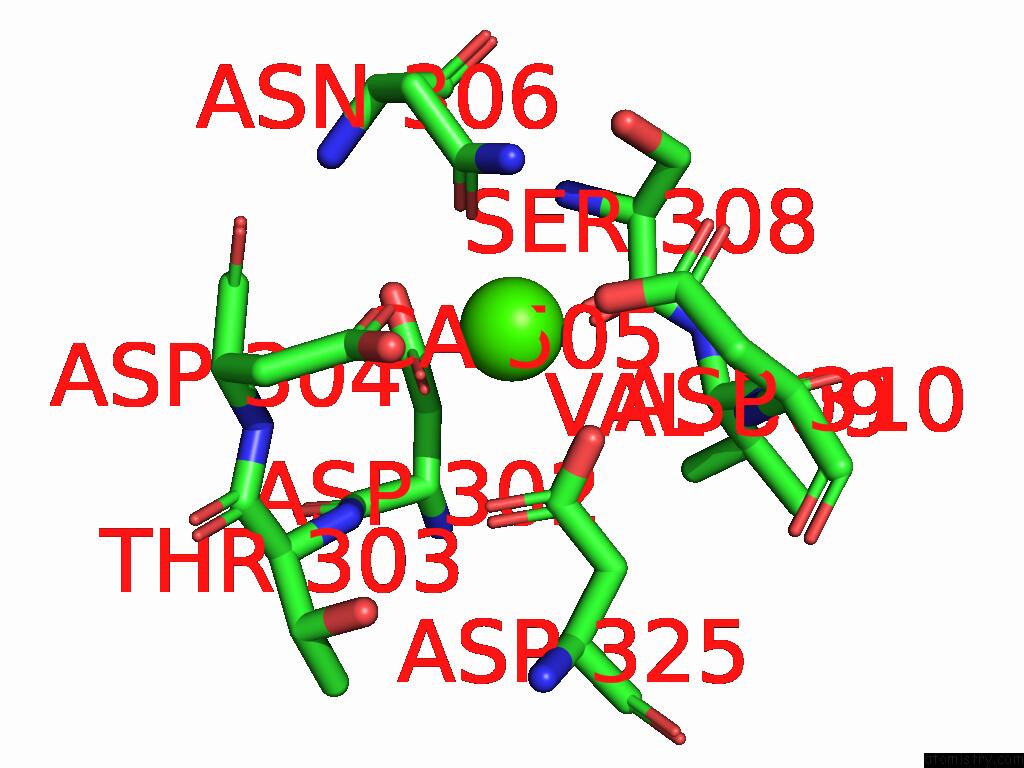

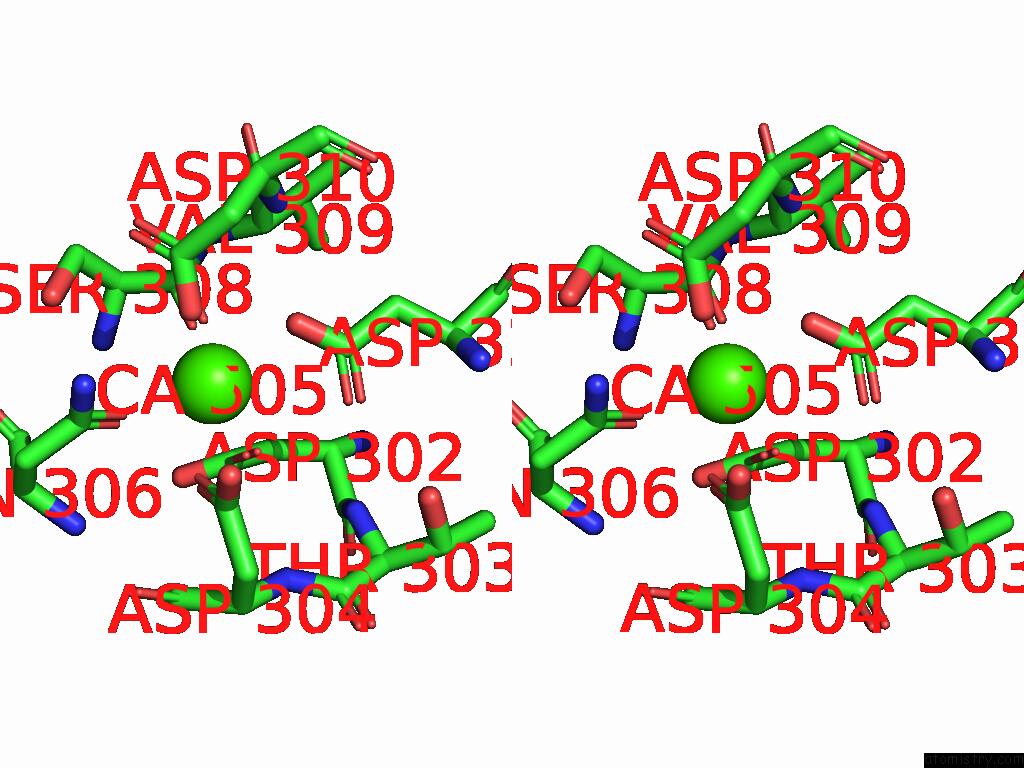

Calcium binding site 3 out of 6 in the Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 3 of Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02 within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Ca505

b:84.3
occ:1.00
 OD2 A:ASP310 2.3 101.2 1.0
O A:SER308 2.3 102.6 1.0
OD2 A:ASP325 2.4 87.0 1.0
OD1 A:ASN306 2.4 73.8 1.0
OD1 A:ASP304 2.4 118.6 1.0
OD1 A:ASP302 2.5 108.0 1.0
CG A:ASN306 3.1 86.8 1.0
ND2 A:ASN306 3.1 87.3 1.0
CG A:ASP325 3.1 90.8 1.0
OD1 A:ASP325 3.2 94.4 1.0
CG A:ASP304 3.3 96.8 1.0
CG A:ASP302 3.4 87.4 1.0
CG A:ASP310 3.4 85.1 1.0
C A:SER308 3.5 76.5 1.0
OD2 A:ASP304 3.7 104.6 1.0
OD2 A:ASP302 3.8 70.6 1.0
OD1 A:ASP310 4.0 89.3 1.0
N A:SER308 4.3 76.1 1.0
OG A:SER308 4.3 88.3 1.0
N A:ASP310 4.3 108.8 1.0
CA A:SER308 4.3 86.8 1.0
N A:VAL309 4.4 71.1 1.0
CB A:ASP310 4.4 80.0 1.0
CA A:VAL309 4.5 83.5 1.0
CB A:ASP302 4.5 85.6 1.0
CB A:ASN306 4.5 85.1 1.0
CB A:ASP325 4.6 79.5 1.0
CB A:ASP304 4.6 91.1 1.0
N A:ASP304 4.7 92.6 1.0
CB A:SER308 4.7 79.7 1.0
N A:ASN306 4.8 81.1 1.0
N A:THR303 4.8 112.1 1.0
C A:VAL309 4.9 104.0 1.0
C A:ASP304 4.9 89.9 1.0
CA A:ASP302 4.9 87.4 1.0
CA A:ASP304 5.0 96.5 1.0

Calcium binding site 4 out of 6 in 8rmy

Go back to Calcium Binding Sites List in 8rmy

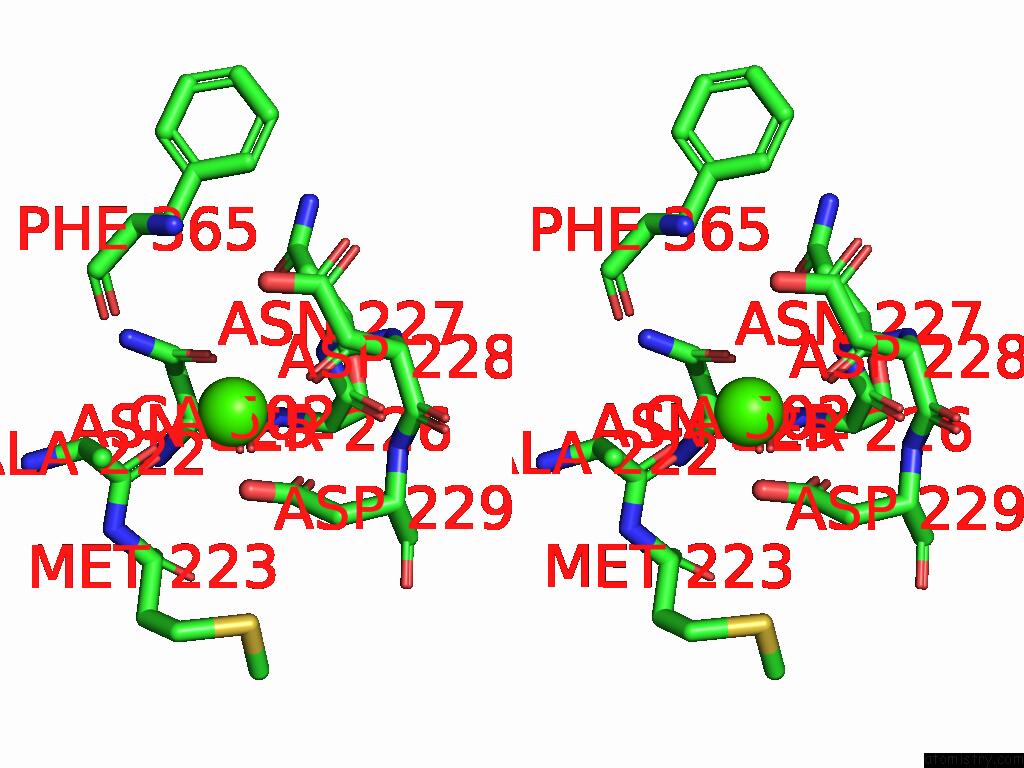

Calcium binding site 4 out of 6 in the Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 4 of Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02 within 5.0Å range:
probe atom residue distance (Å) B Occ
D:Ca502

b:96.8
occ:1.00
 OD1 D:ASN225 2.2 105.8 1.0
O D:ALA222 2.3 92.7 1.0
O D:ASN227 2.3 104.1 1.0
O D:ASN225 2.4 91.0 1.0
OD1 D:ASP229 2.6 81.1 1.0
OD2 D:ASP229 2.7 88.1 1.0
CG D:ASP229 2.9 85.7 1.0
CG D:ASN225 3.1 96.8 1.0
C D:ALA222 3.3 101.4 1.0
C D:ASN225 3.4 97.5 1.0
C D:ASN227 3.4 105.8 1.0
N D:ASN227 3.7 85.7 1.0
ND2 D:ASN225 3.8 103.5 1.0
C D:SER226 4.0 93.6 1.0
CA D:ASN227 4.0 84.1 1.0
CA D:ALA222 4.1 97.8 1.0
CA D:ASN225 4.1 88.7 1.0
CB D:ASN225 4.2 89.4 1.0
O D:PHE365 4.3 85.0 1.0
N D:ASN225 4.3 90.1 1.0
N D:SER226 4.3 88.1 1.0
O D:SER226 4.3 101.5 1.0
N D:MET223 4.3 95.2 1.0
OD2 D:ASP228 4.3 117.8 1.0
CB D:ASN227 4.3 91.3 1.0
CB D:ASP229 4.4 90.7 1.0
CA D:MET223 4.4 84.8 1.0
CB D:ALA222 4.5 93.2 1.0
CB D:ASP228 4.5 82.2 1.0
N D:ASP229 4.6 94.6 1.0
N D:ASP228 4.6 77.2 1.0
CA D:SER226 4.6 82.1 1.0
CG D:ASP228 4.7 106.7 1.0
C D:MET223 4.8 91.7 1.0
CA D:ASP228 5.0 85.9 1.0

Calcium binding site 5 out of 6 in 8rmy

Go back to Calcium Binding Sites List in 8rmy

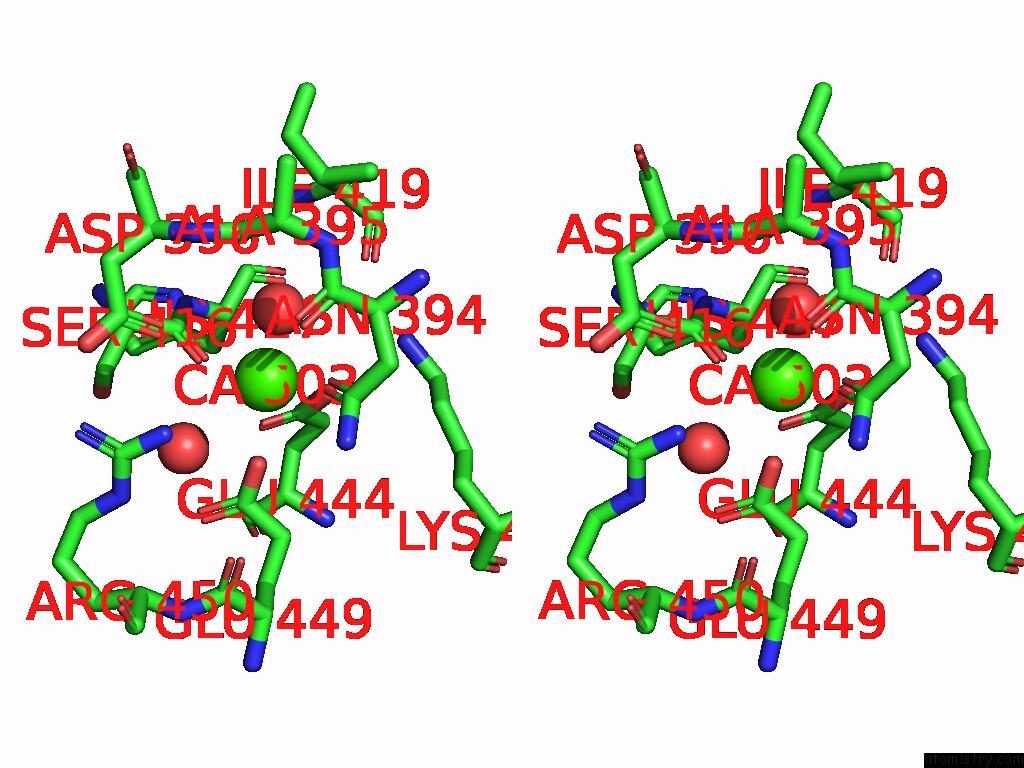

Calcium binding site 5 out of 6 in the Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 5 of Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02 within 5.0Å range:
probe atom residue distance (Å) B Occ
D:Ca503

b:93.9
occ:1.00
 OD1 D:ASN394 2.2 87.8 1.0
O D:HOH607 2.3 108.2 1.0
O D:SER416 2.4 105.0 1.0
OE2 D:GLU449 2.5 76.2 1.0
OE2 D:GLU444 2.6 96.5 1.0
OE1 D:GLU444 2.8 90.8 1.0
CD D:GLU444 3.1 112.7 1.0
CG D:ASN394 3.3 83.5 1.0
C D:SER416 3.5 107.5 1.0
CD D:GLU449 3.6 95.3 1.0
NH2 D:ARG450 3.8 126.1 1.0
ND2 D:ASN394 4.0 98.2 1.0
OD1 D:ASP396 4.1 142.2 1.0
O D:ASN394 4.1 89.8 1.0
OE1 D:GLU449 4.3 94.4 1.0
O D:HOH604 4.3 76.3 1.0
CA D:HIS417 4.3 116.9 1.0
N D:HIS417 4.4 118.8 1.0
CA D:ASN394 4.4 87.1 1.0
CB D:ASN394 4.4 80.5 1.0
O D:ALA395 4.5 102.4 1.0
CA D:SER416 4.5 104.0 1.0
C D:ASN394 4.5 87.0 1.0
NZ D:LYS441 4.5 83.9 1.0
CG D:GLU449 4.6 114.1 1.0
CG D:GLU444 4.6 112.0 1.0
CB D:SER416 4.8 89.8 1.0
CZ D:ARG450 4.8 96.9 1.0
O D:ILE419 5.0 84.2 1.0

Calcium binding site 6 out of 6 in 8rmy

Go back to Calcium Binding Sites List in 8rmy

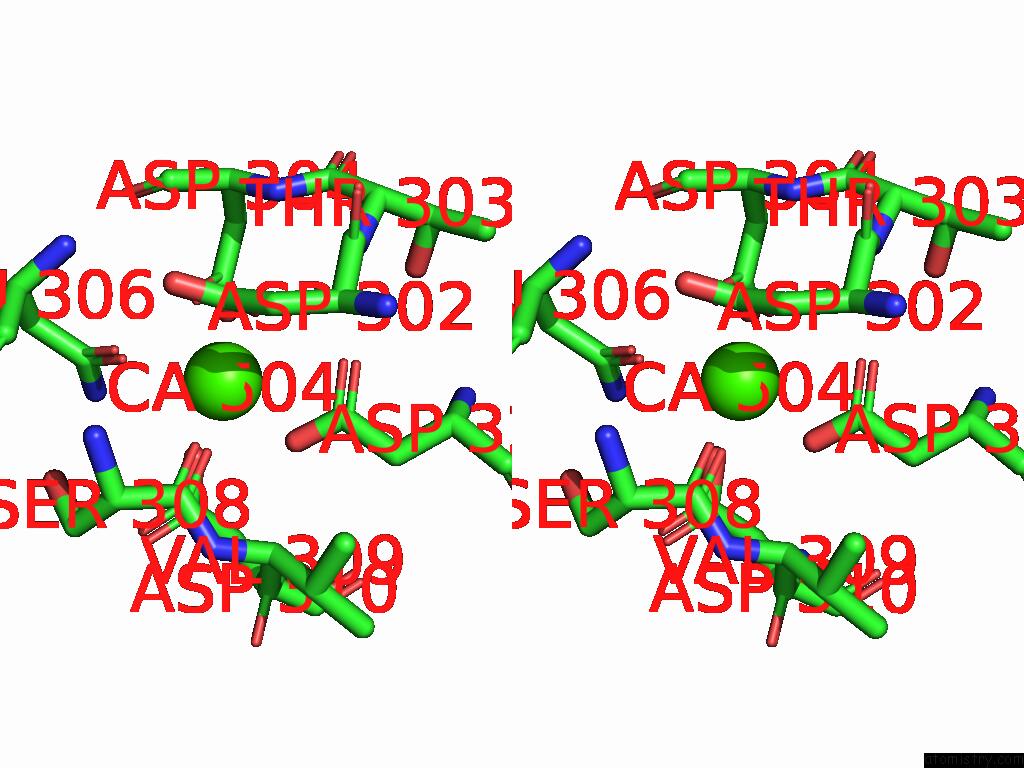

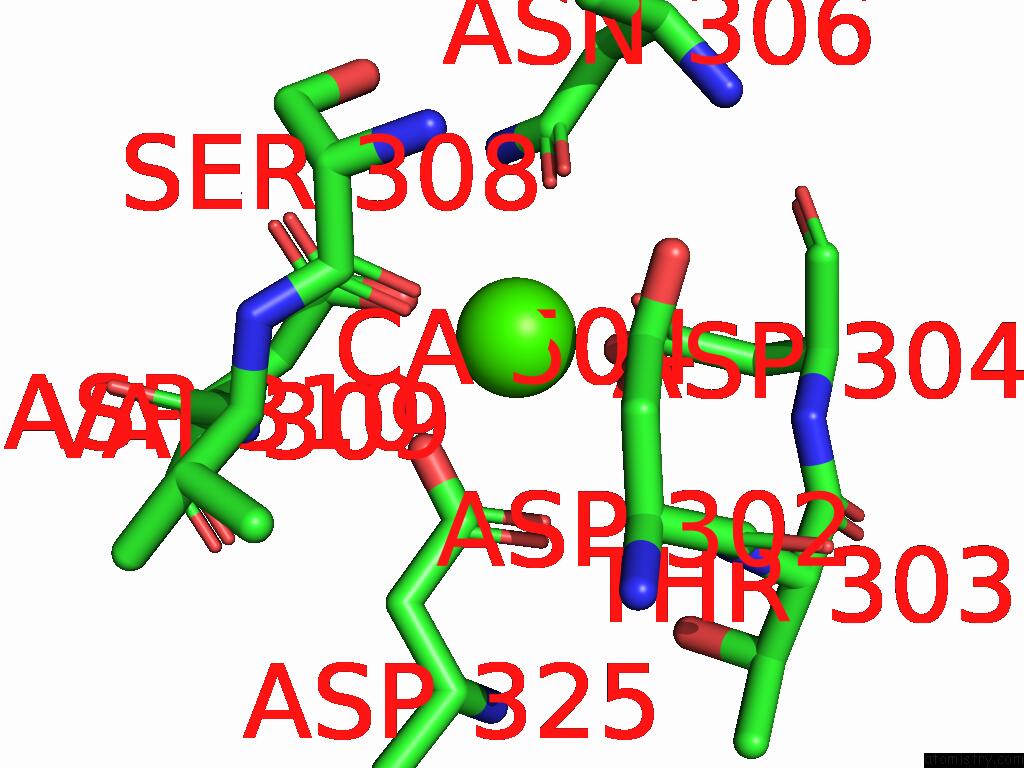

Calcium binding site 6 out of 6 in the Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 6 of Transglutaminase 3 in Complex with Inhibitor Z-Don and Dh Patient- Derived Fab DH63-A02 within 5.0Å range:
probe atom residue distance (Å) B Occ
D:Ca504

b:84.3
occ:1.00
 OD2 D:ASP325 2.2 72.4 1.0
OD1 D:ASP302 2.3 90.1 1.0
O D:SER308 2.4 112.9 1.0
OD1 D:ASP304 2.4 123.2 1.0
OD1 D:ASN306 2.5 71.7 1.0
OD2 D:ASP310 2.6 78.2 1.0
CG D:ASP325 2.9 83.8 1.0
OD1 D:ASP325 3.0 109.2 1.0
CG D:ASP302 3.2 85.0 1.0
CG D:ASP304 3.2 93.4 1.0
CG D:ASN306 3.3 71.3 1.0
ND2 D:ASN306 3.4 80.3 1.0
C D:SER308 3.5 84.2 1.0
OD2 D:ASP304 3.6 84.9 1.0
CG D:ASP310 3.7 82.3 1.0
OD2 D:ASP302 3.7 65.0 1.0
CB D:ASP302 4.3 103.2 1.0
CB D:ASP325 4.3 83.1 1.0
OD1 D:ASP310 4.4 64.6 1.0
N D:SER308 4.4 72.7 1.0
N D:VAL309 4.4 70.1 1.0
N D:ASP310 4.4 93.3 1.0
CA D:VAL309 4.5 76.1 1.0
CA D:SER308 4.5 85.7 1.0
CB D:ASP304 4.5 77.7 1.0
OG D:SER308 4.5 88.5 1.0
N D:THR303 4.5 111.8 1.0
N D:ASP304 4.6 88.0 1.0
CB D:ASP310 4.6 71.2 1.0
CA D:ASP302 4.7 100.8 1.0
CB D:ASN306 4.7 65.1 1.0
C D:ASP304 4.9 69.2 1.0
N D:ASN306 4.9 66.8 1.0
CA D:ASP304 4.9 76.3 1.0
C D:VAL309 4.9 88.1 1.0
CB D:SER308 5.0 98.1 1.0

Reference:

R.Iversen, J.E.Heggelund, S.Das, L.M.Sollid. Enzyme-Activating B-Cell Receptors Boost Antigen Presentation to Pathogenic T Cells in Gluten-Sensitive Autoimmunity Nat Commun 2025.
ISSN: ESSN 2041-1723
DOI: 10.1038/S41467-025-57564-5
