Calcium in PDB 8s2y: Crystal Structure of Alcohol Oxidase PAAOX1 From Picea Abies

The structure of Crystal Structure of Alcohol Oxidase PAAOX1 From Picea Abies, PDB code: 8s2y was solved by N.Kruhler, T.Haataja, M.Sandgren, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	65.24 / 1.64
Space group	P 1 21 1
Cell size a, b, c (Å), α, β, γ (°)	63.099, 99.273, 87.959, 90, 100.25, 90
R / Rfree (%)	18.5 / 21

The structure of Crystal Structure of Alcohol Oxidase PAAOX1 From Picea Abies also contains other interesting chemical elements:

Sodium

(Na)

4 atoms

The binding sites of Calcium atom in the Crystal Structure of Alcohol Oxidase PAAOX1 From Picea Abies (pdb code 8s2y). This binding sites where shown within 5.0 Angstroms radius around Calcium atom.
In total only one binding site of Calcium was determined in the Crystal Structure of Alcohol Oxidase PAAOX1 From Picea Abies, PDB code: 8s2y:

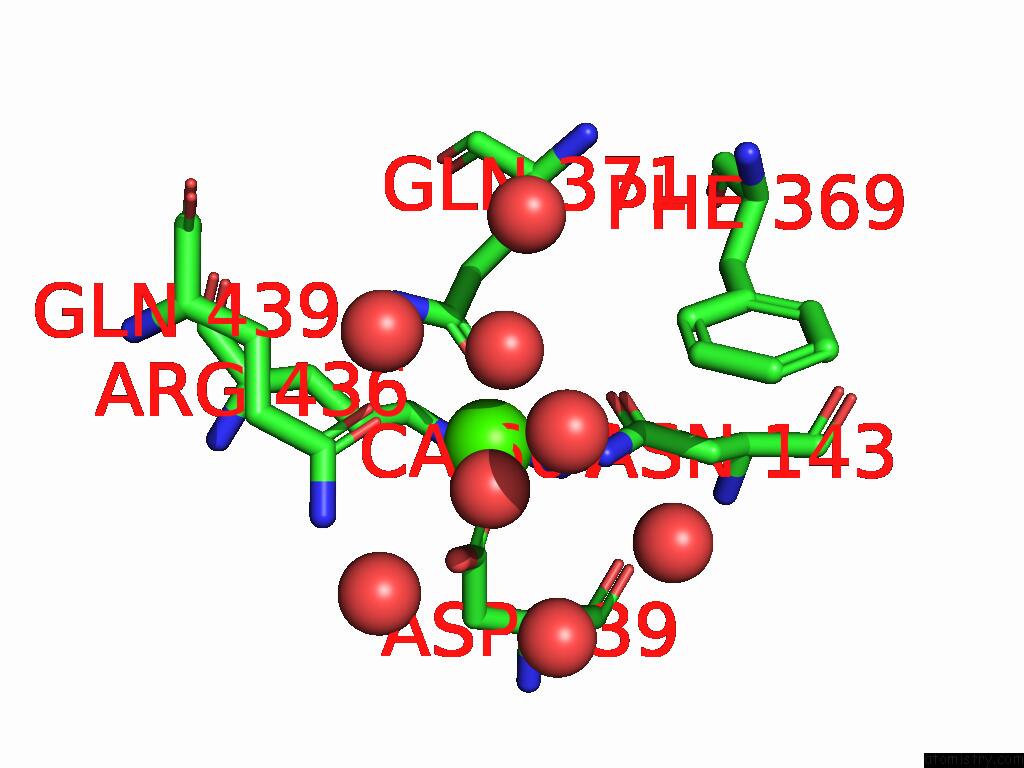

Calcium binding site 1 out of 1 in the Crystal Structure of Alcohol Oxidase PAAOX1 From Picea Abies


Mono view

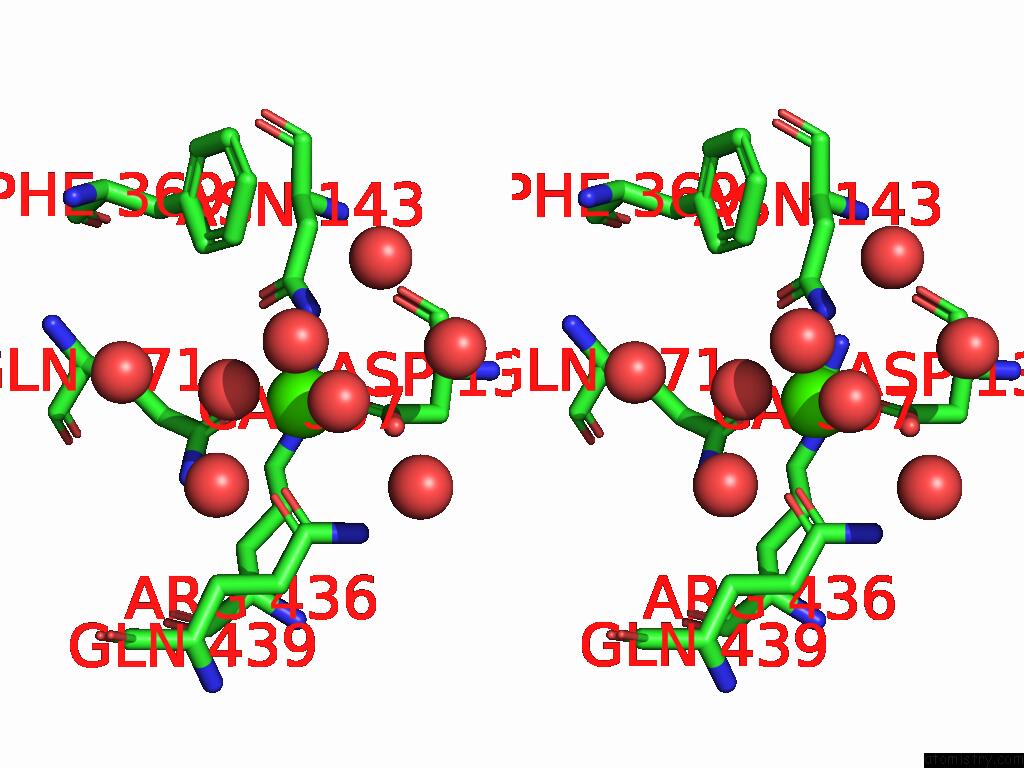

Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 1 of Crystal Structure of Alcohol Oxidase PAAOX1 From Picea Abies within 5.0Å range: probe atom residue distance (Å) B Occ B:Ca607 b:21.2 occ:1.00 O B:HOH959 2.3 23.9 1.0 O A:HOH1021 2.3 21.9 1.0 OE1 A:GLN371 2.4 18.9 1.0 ND2 B:ASN143 2.4 16.1 1.0 OE1 A:GLN439 2.4 18.7 1.0 OD2 B:ASP139 2.5 24.4 1.0 OD1 B:ASP139 2.5 20.4 1.0 CG B:ASP139 2.8 23.9 1.0 CD A:GLN439 3.3 22.9 1.0 CD A:GLN371 3.4 18.2 1.0 CG B:ASN143 3.4 20.3 1.0 NE2 A:GLN439 3.6 23.2 1.0 OD1 B:ASN143 3.6 23.0 1.0 NE2 A:GLN371 3.7 16.8 1.0 O B:HOH957 4.2 32.6 1.0 CB B:ASP139 4.4 20.7 1.0 O A:HOH1055 4.5 31.8 1.0 O B:HOH939 4.5 23.4 1.0 O B:HOH763 4.5 27.0 1.0 NE A:ARG436 4.6 19.1 1.0 CG A:GLN439 4.7 22.3 1.0 CG A:GLN371 4.7 18.6 1.0 O B:ASP139 4.7 19.3 1.0 CB B:ASN143 4.7 18.6 1.0 O A:HOH777 4.8 24.7 1.0 CD2 A:PHE369 4.8 18.5 1.0 O A:HOH1043 4.8 40.6 1.0 CG A:ARG436 4.9 15.7 1.0 CE2 A:PHE369 5.0 23.9 1.0

T.Paasela, N.Kruhler, H.Zhao, M.Sun, T.Haataja, J.Karppi, A.Vaattovaara, E.Master, M.Sandgren, A.Karkonen, M.Tenkanen. A Glycerol Oxidase From Norway Spruce (Picea Abies L. Karst.) Expands Biochemical and Structural Attributes of the Gmc Oxidoreductase Superfamily To Be Published.
