Calcium in PDB 9e9j: L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant

Protein crystallography data

The structure of L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant, PDB code: 9e9j was solved by S.Wang, P.D.Jeffrey, D.Sorigue, T.K.Hyster, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å) 29.33 / 2.15
Space group P 21 21 21
Cell size a, b, c (Å), α, β, γ (°) 61.002, 130.364, 164.195, 90, 90, 90
R / Rfree (%) 20.4 / 25.2

Calcium Binding Sites:

The binding sites of Calcium atom in the L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant (pdb code 9e9j). This binding sites where shown within 5.0 Angstroms radius around Calcium atom.
In total 4 binding sites of Calcium where determined in the L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant, PDB code: 9e9j:
Jump to Calcium binding site number: 1; 2; 3; 4;

Calcium binding site 1 out of 4 in 9e9j

Go back to Calcium Binding Sites List in 9e9j

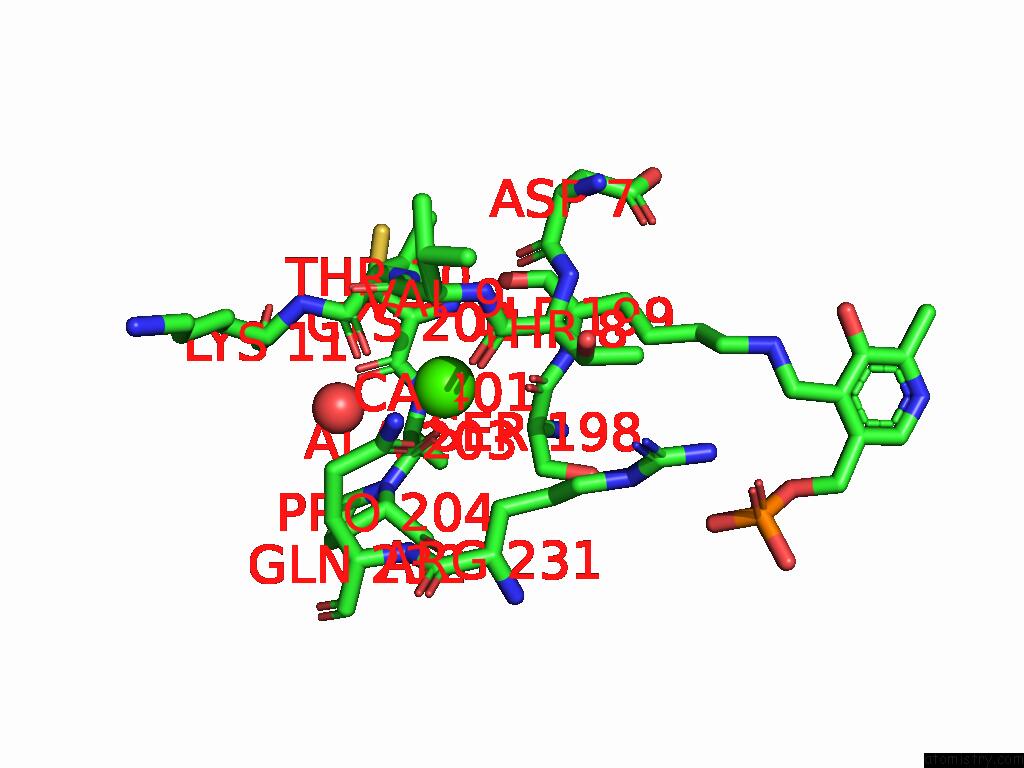

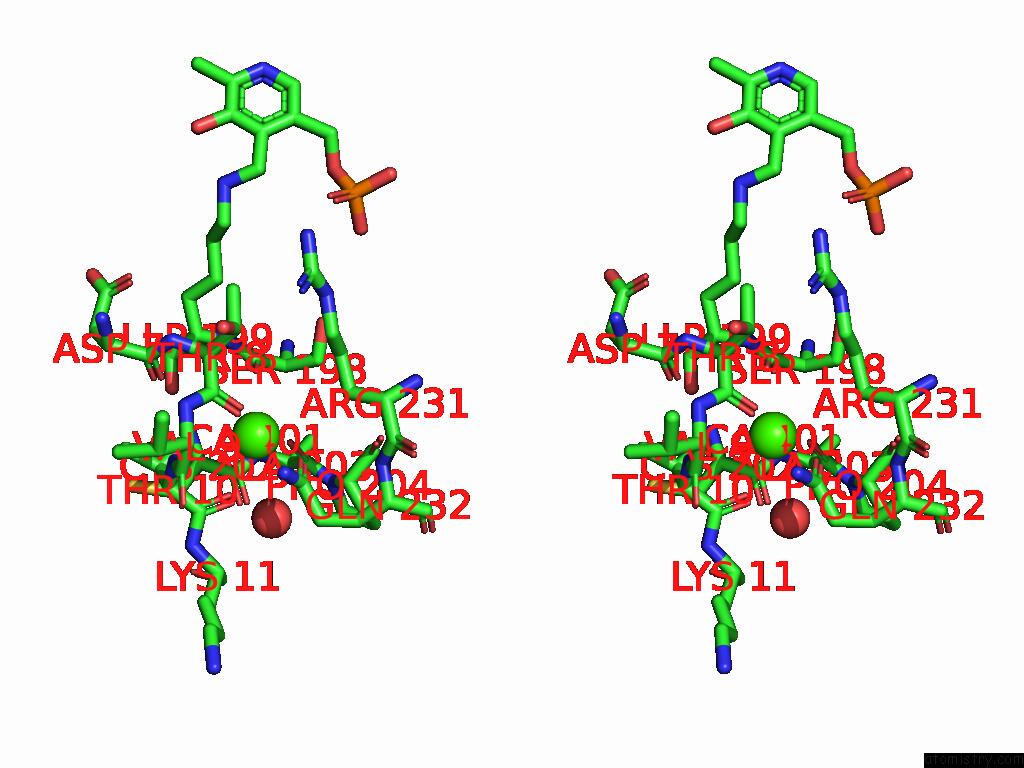

Calcium binding site 1 out of 4 in the L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 1 of L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant within 5.0Å range:
probe atom residue distance (Å) B Occ
A:Ca401

b:24.6
occ:1.00
 OE1 B:GLN232 2.5 18.3 1.0
O A:SER198 2.6 22.6 1.0
OG1 A:THR10 2.7 30.6 1.0
O A:THR10 2.7 27.2 1.0
O A:ALA203 2.8 17.6 1.0
O A:THR8 3.0 27.2 1.0
C A:SER198 3.5 23.7 1.0
O A:HOH535 3.5 25.4 1.0
CD B:GLN232 3.5 25.2 1.0
C A:THR10 3.7 26.7 1.0
N A:THR10 3.8 28.3 1.0
CB A:THR10 3.9 26.2 1.0
C A:THR8 3.9 27.9 1.0
CA A:SER198 3.9 18.1 1.0
C A:ALA203 3.9 20.1 1.0
CA A:THR10 4.0 23.9 1.0
NE2 B:GLN232 4.0 21.5 1.0
CB A:SER198 4.2 21.6 1.0
CA A:PRO204 4.3 21.9 1.0
O A:LLP199 4.3 22.3 0.9
C A:CYS202 4.4 20.1 1.0
CA A:THR8 4.4 26.3 1.0
N A:LLP199 4.5 19.9 0.9
O A:ASP7 4.5 23.7 1.0
CA A:CYS202 4.5 17.7 1.0
C A:VAL9 4.6 28.2 1.0
N A:PRO204 4.6 27.5 1.0
O A:CYS202 4.6 22.9 1.0
CB B:ARG231 4.7 22.2 1.0
N A:ALA203 4.7 27.6 1.0
O A:PRO204 4.7 26.6 1.0
CG B:GLN232 4.7 18.3 1.0
C A:PRO204 4.8 22.7 1.0
CA A:LLP199 4.8 18.5 0.9
N A:VAL9 4.8 22.1 1.0
N A:LYS11 4.9 27.7 1.0

Calcium binding site 2 out of 4 in 9e9j

Go back to Calcium Binding Sites List in 9e9j

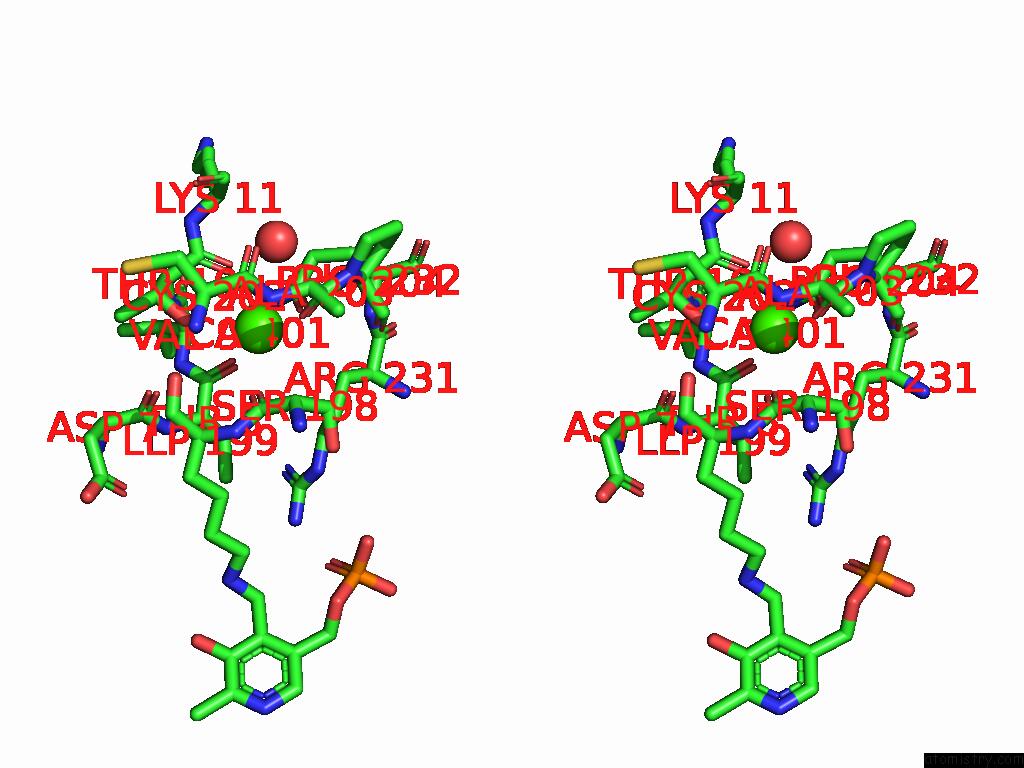

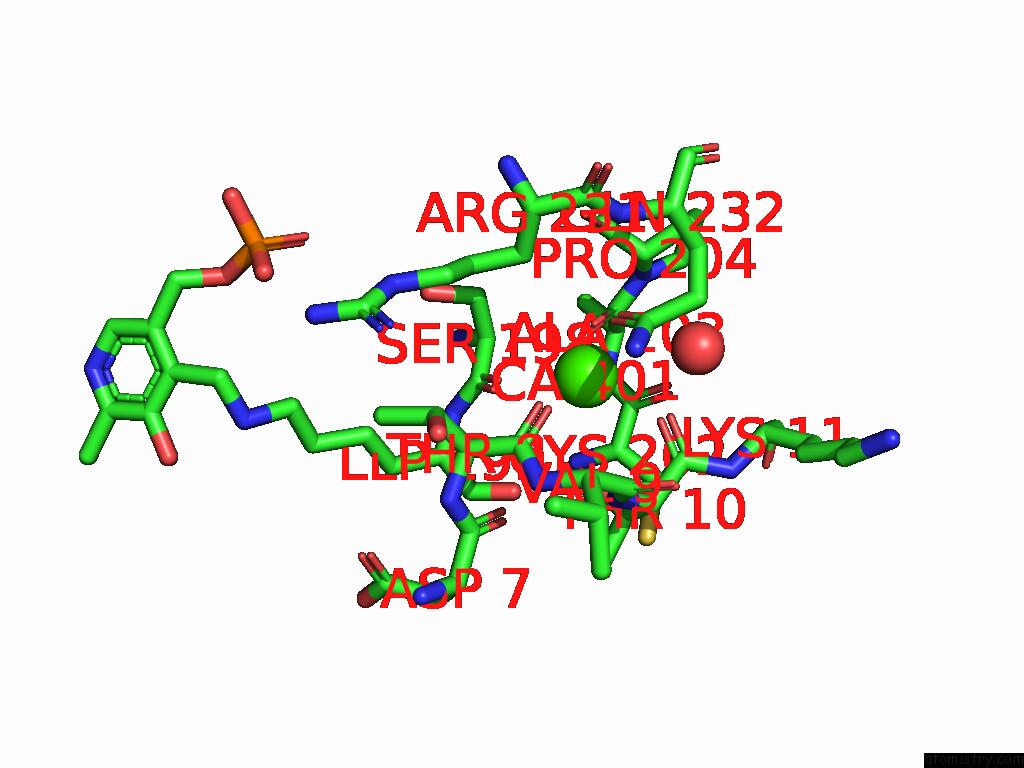

Calcium binding site 2 out of 4 in the L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 2 of L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant within 5.0Å range:
probe atom residue distance (Å) B Occ
B:Ca401

b:24.3
occ:1.00
 OE1 A:GLN232 2.4 18.8 1.0
O B:THR10 2.7 22.2 1.0
O B:SER198 2.7 26.2 1.0
O B:ALA203 2.8 21.4 1.0
O B:THR8 3.0 25.0 1.0
OG1 B:THR10 3.0 31.9 1.0
CD A:GLN232 3.4 26.3 1.0
O B:HOH547 3.5 26.2 1.0
C B:SER198 3.6 28.6 1.0
C B:THR10 3.7 31.6 1.0
C B:ALA203 3.9 22.9 1.0
NE2 A:GLN232 3.9 21.2 1.0
C B:THR8 4.0 26.4 1.0
N B:THR10 4.0 24.1 1.0
CA B:SER198 4.1 17.5 1.0
CB B:THR10 4.1 33.2 1.0
CA B:THR10 4.2 31.0 1.0
CA B:PRO204 4.3 24.0 1.0
CB B:SER198 4.3 25.1 1.0
C B:CYS202 4.4 29.5 1.0
O B:CYS202 4.4 29.5 1.0
O B:PRO204 4.5 24.6 1.0
CG A:GLN232 4.5 16.4 1.0
CB A:ARG231 4.5 21.4 1.0
N B:PRO204 4.5 25.4 1.0
O B:LLP199 4.6 23.6 0.9
CA B:CYS202 4.6 27.9 1.0
C B:VAL9 4.6 26.0 1.0
CA B:THR8 4.6 25.9 1.0
C B:PRO204 4.6 23.5 1.0
N B:ALA203 4.7 31.3 1.0
O B:ASP7 4.7 24.0 1.0
N B:LLP199 4.7 17.6 0.9
N B:VAL9 4.9 22.6 1.0
N B:LYS11 4.9 28.1 1.0
CA B:ALA203 5.0 22.1 1.0

Calcium binding site 3 out of 4 in 9e9j

Go back to Calcium Binding Sites List in 9e9j
Calcium binding site 3 out of 4 in the L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 3 of L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant within 5.0Å range:
probe atom residue distance (Å) B Occ
C:Ca401

b:27.0
occ:1.00
 OE1 D:GLN232 2.5 24.2 1.0
O C:SER198 2.6 21.8 1.0
O C:THR10 2.7 25.6 1.0
O C:ALA203 2.9 20.6 1.0
OG1 C:THR10 2.9 27.7 1.0
O C:THR8 3.0 19.5 1.0
O C:HOH519 3.4 24.2 1.0
CD D:GLN232 3.4 23.4 1.0
C C:SER198 3.5 23.7 1.0
C C:THR10 3.7 28.6 1.0
NE2 D:GLN232 3.8 20.5 1.0
N C:THR10 3.9 25.9 1.0
C C:THR8 3.9 25.6 1.0
C C:ALA203 4.0 22.9 1.0
CA C:SER198 4.0 18.3 1.0
CB C:THR10 4.0 26.0 1.0
CA C:THR10 4.1 23.3 1.0
CB C:SER198 4.2 25.0 1.0
O C:LLP199 4.3 22.2 0.9
CA C:PRO204 4.4 20.7 1.0
C C:CYS202 4.4 24.6 1.0
C C:VAL9 4.5 21.6 1.0
O C:CYS202 4.5 19.5 1.0
O C:PRO204 4.5 21.9 1.0
N C:LLP199 4.6 19.7 0.9
CB D:ARG231 4.6 20.4 1.0
CA C:CYS202 4.6 21.9 1.0
CA C:THR8 4.6 24.3 1.0
CG D:GLN232 4.7 19.4 1.0
N C:PRO204 4.7 20.7 1.0
C C:PRO204 4.7 22.8 1.0
O C:ASP7 4.7 26.0 1.0
N C:ALA203 4.7 25.4 1.0
N C:VAL9 4.8 26.2 1.0
CA C:LLP199 4.8 22.0 0.9
N C:LYS11 4.8 29.2 1.0
CG D:ARG231 5.0 17.0 1.0
CA C:VAL9 5.0 23.1 1.0

Calcium binding site 4 out of 4 in 9e9j

Go back to Calcium Binding Sites List in 9e9j

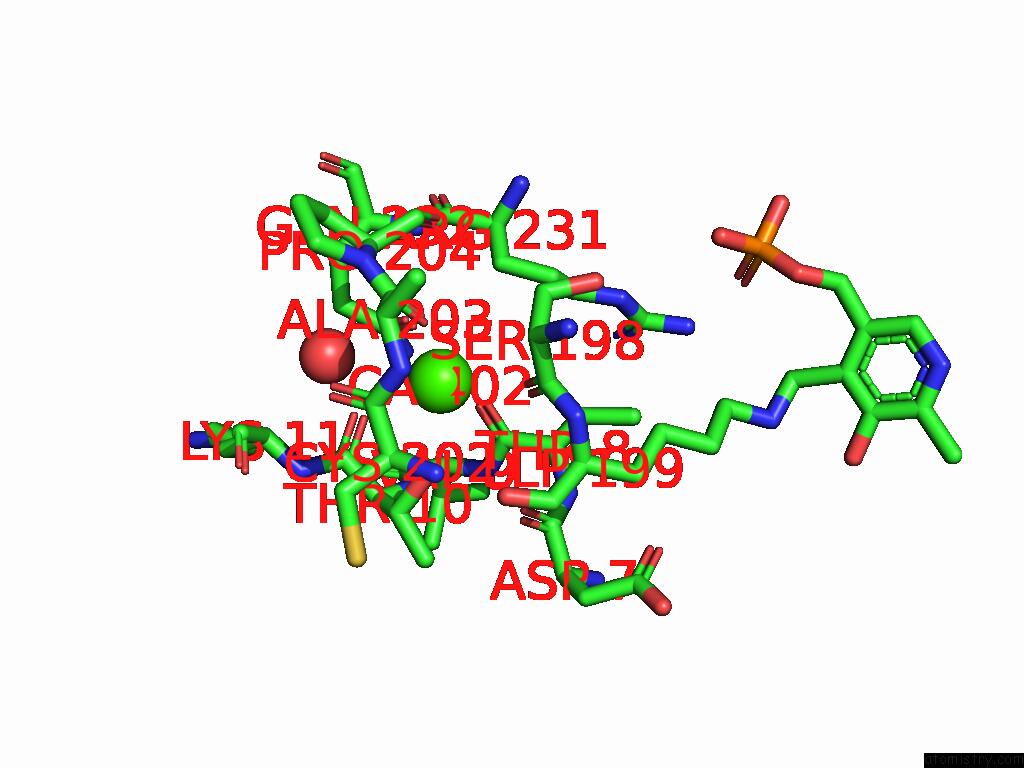

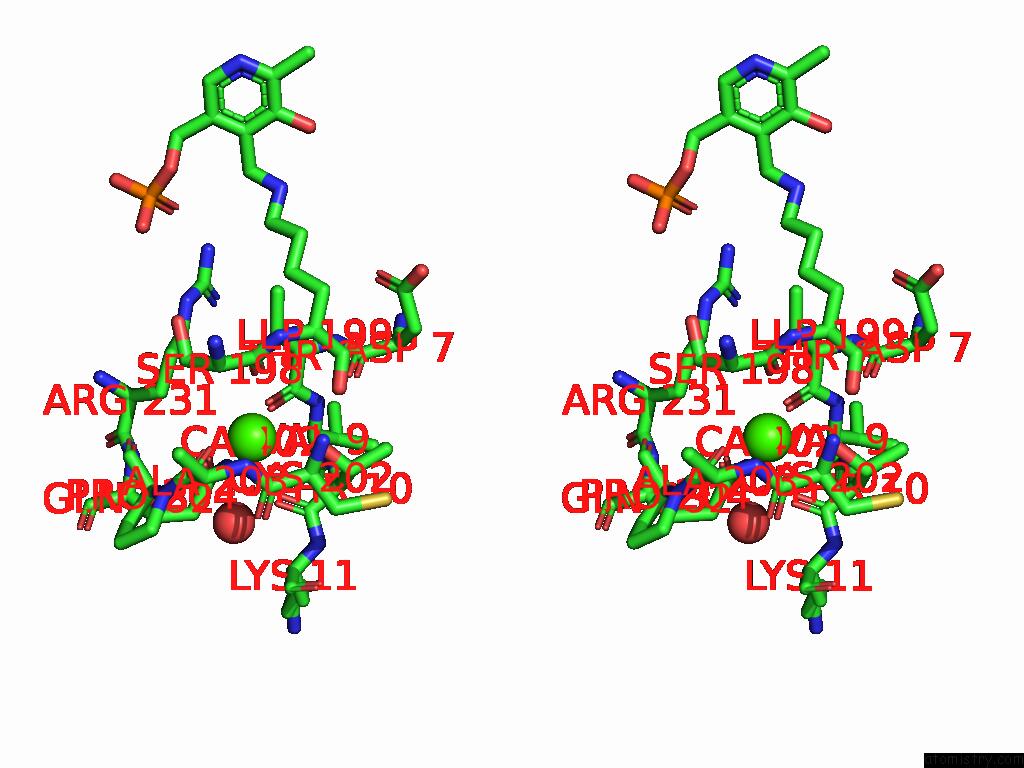

Calcium binding site 4 out of 4 in the L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 4 of L-Allo-Threonine Aldolase From Thermotoga Maritima, N308E-Y87A-R122G- P121D Mutant within 5.0Å range:
probe atom residue distance (Å) B Occ
D:Ca402

b:22.5
occ:1.00
 OE1 C:GLN232 2.5 21.5 1.0
O D:SER198 2.6 20.1 1.0
O D:THR10 2.7 25.0 1.0
OG1 D:THR10 2.7 26.3 1.0
O D:THR8 2.8 18.4 1.0
O D:ALA203 3.0 20.0 1.0
O D:HOH531 3.4 24.5 1.0
CD C:GLN232 3.4 23.7 1.0
C D:SER198 3.5 27.0 1.0
C D:THR10 3.6 27.3 1.0
N D:THR10 3.7 20.4 1.0
C D:THR8 3.8 24.8 1.0
CB D:THR10 3.9 23.8 1.0
NE2 C:GLN232 3.9 22.9 1.0
CA D:THR10 4.0 29.0 1.0
CA D:SER198 4.0 22.2 1.0
C D:ALA203 4.1 24.7 1.0
CB D:SER198 4.2 24.7 1.0
C D:VAL9 4.4 24.7 1.0
O D:LLP199 4.5 21.5 0.9
CA D:PRO204 4.5 17.4 1.0
C D:CYS202 4.5 25.1 1.0
CA D:THR8 4.5 19.6 1.0
O D:PRO204 4.5 20.7 1.0
CB C:ARG231 4.6 17.7 1.0
O D:CYS202 4.6 19.5 1.0
O D:ASP7 4.6 25.8 1.0
N D:LLP199 4.6 15.2 0.9
CA D:CYS202 4.6 21.7 1.0
CG C:GLN232 4.6 22.8 1.0
N D:VAL9 4.7 18.7 1.0
C D:PRO204 4.7 23.1 1.0
N D:PRO204 4.8 28.4 1.0
N D:LYS11 4.8 26.9 1.0
N D:ALA203 4.9 17.3 1.0
CA D:LLP199 4.9 19.1 0.9
CA D:VAL9 4.9 26.4 1.0
CG C:ARG231 4.9 23.6 1.0

Reference:

Y.Ouyang, S.Wang, D.Sorigue, T.K.Hyster. Nucleophilic Alpha-Functionalization of Benzyl Amines Using An Engineered Threonine Aldolase. J.Am.Chem.Soc. 2025.
ISSN: ESSN 1520-5126
PubMed: 40631863
DOI: 10.1021/JACS.5C04097
