Calcium in PDB 9eao: Murine Norovirus Allosteric V339I Escape Mutant + Calcium

The binding sites of Calcium atom in the Murine Norovirus Allosteric V339I Escape Mutant + Calcium (pdb code 9eao). This binding sites where shown within 5.0 Angstroms radius around Calcium atom.
In total 3 binding sites of Calcium where determined in the Murine Norovirus Allosteric V339I Escape Mutant + Calcium, PDB code: 9eao:
Jump to Calcium binding site number: 1; 2; 3;

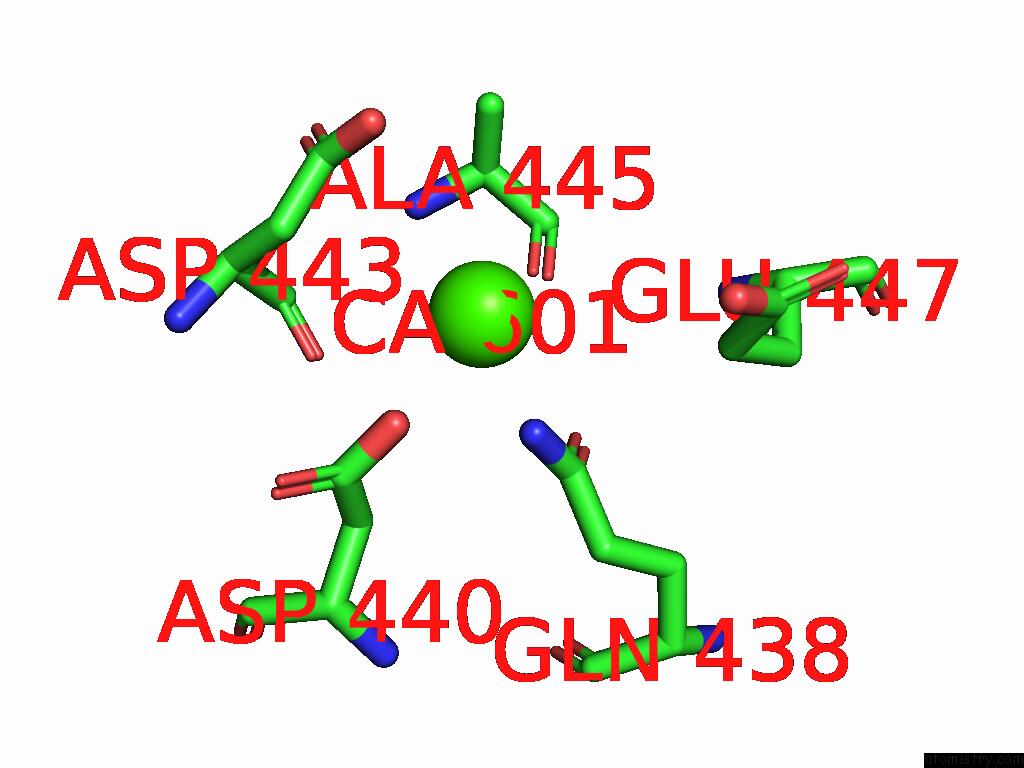

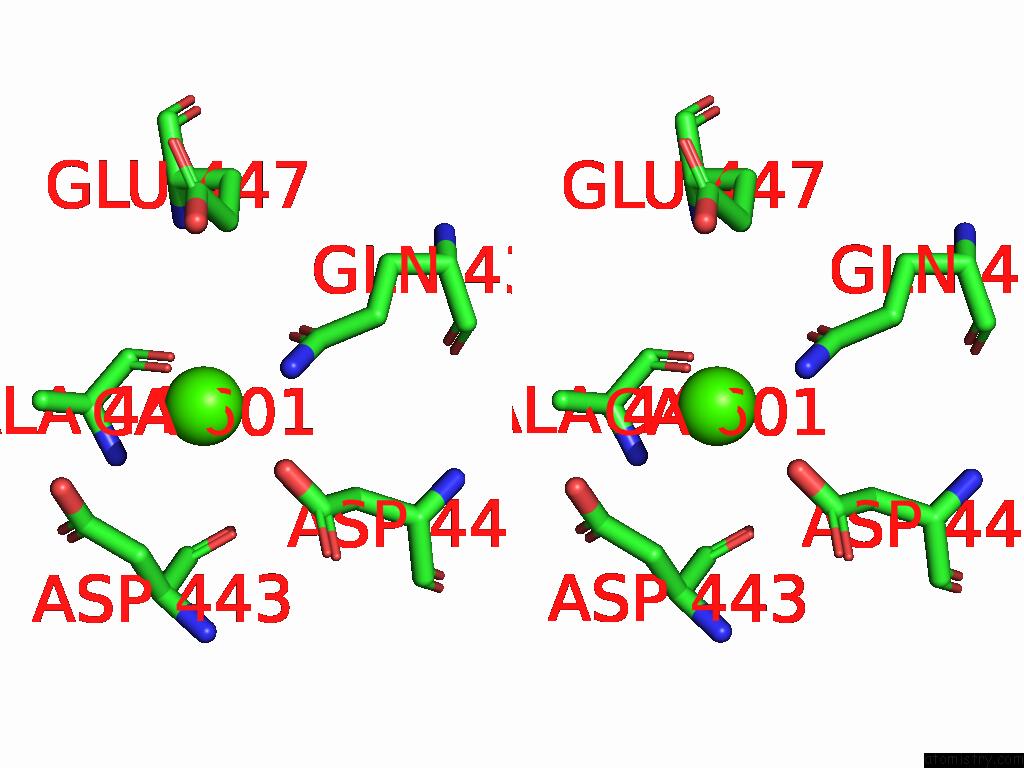

Calcium binding site 1 out of 3 in the Murine Norovirus Allosteric V339I Escape Mutant + Calcium


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 1 of Murine Norovirus Allosteric V339I Escape Mutant + Calcium within 5.0Å range: probe atom residue distance (Å) B Occ A:Ca601 b:50.4 occ:1.00 NE2 A:GLN438 2.4 32.8 1.0 OD2 A:ASP440 2.4 33.4 1.0 CD A:GLN438 3.6 32.1 1.0 CG A:ASP440 3.6 32.8 1.0 OD2 A:ASP443 3.8 34.5 1.0 CB A:ASP443 3.9 26.9 1.0 O A:ALA445 3.9 31.6 1.0 OE1 A:GLN438 4.1 28.1 1.0 CG A:ASP443 4.1 33.8 1.0 O A:ASP443 4.2 33.1 1.0 CG A:GLU447 4.3 30.8 1.0 CB A:ASP440 4.4 28.8 1.0 OD1 A:ASP440 4.5 35.2 1.0 OE2 A:GLU447 4.7 37.6 1.0 C A:ASP443 4.7 30.4 1.0 CG A:GLN438 4.8 27.1 1.0 CA A:ASP443 4.9 28.2 1.0 C A:ALA445 4.9 30.3 1.0 CD A:GLU447 5.0 34.0 1.0

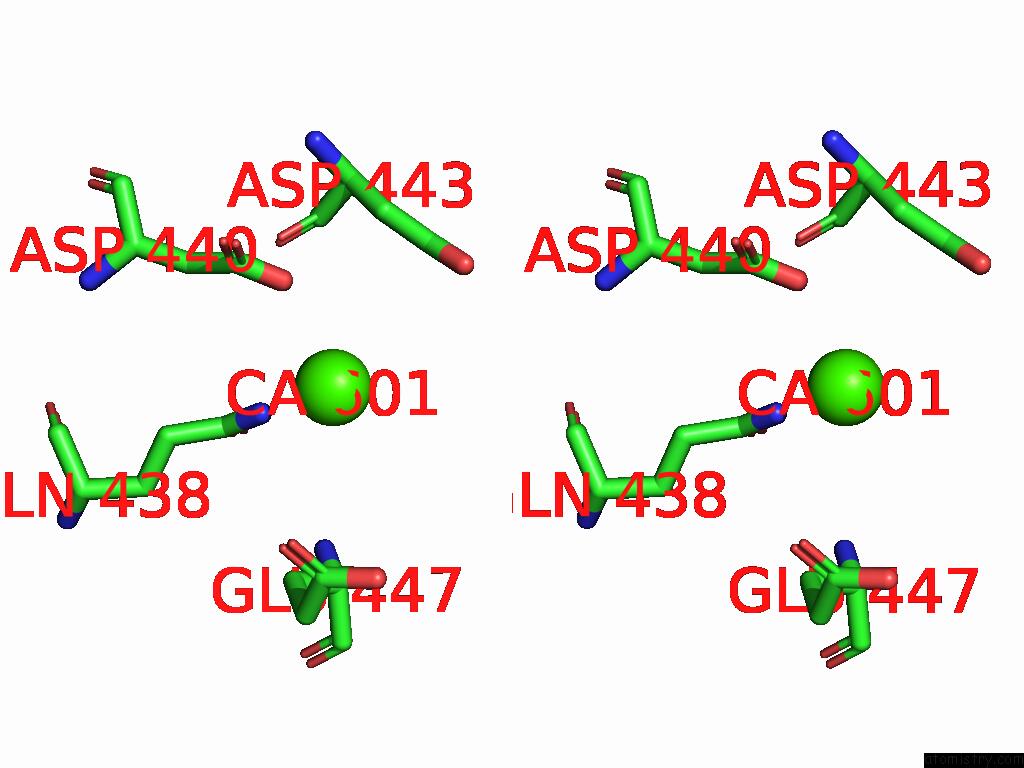

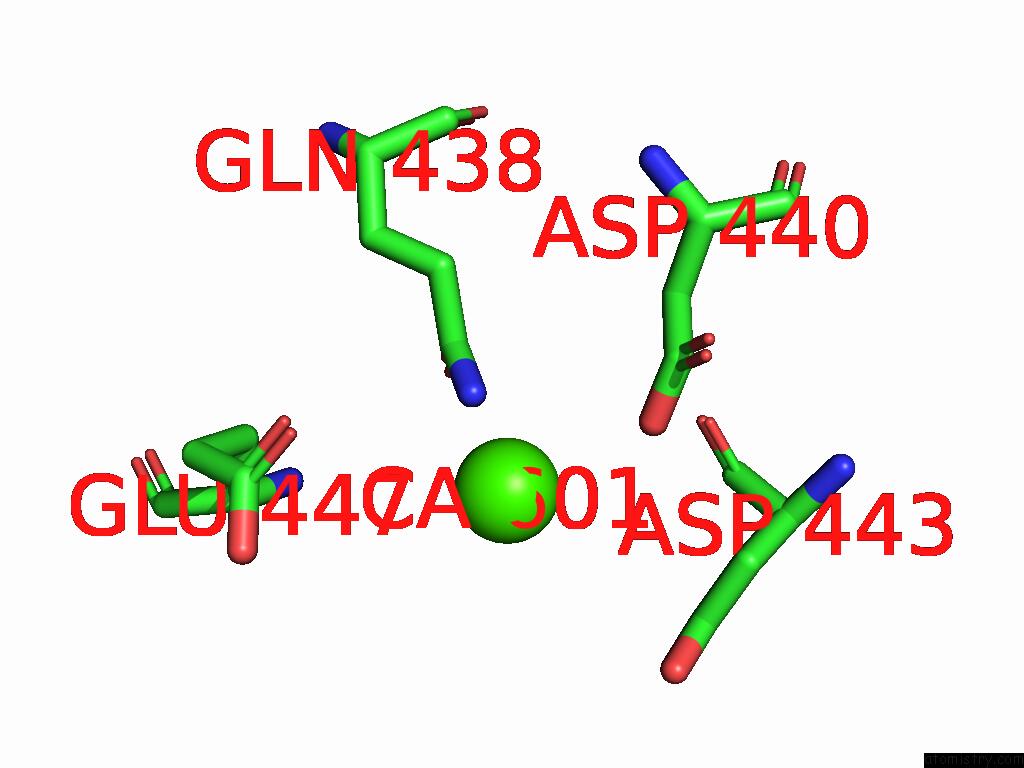

Calcium binding site 2 out of 3 in the Murine Norovirus Allosteric V339I Escape Mutant + Calcium


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 2 of Murine Norovirus Allosteric V339I Escape Mutant + Calcium within 5.0Å range: probe atom residue distance (Å) B Occ B:Ca601 b:47.2 occ:1.00 NE2 B:GLN438 2.3 28.3 1.0 OD2 B:ASP440 3.1 27.9 1.0 CD B:GLN438 3.7 28.0 1.0 CG B:ASP440 3.9 29.8 1.0 OE1 B:GLU447 3.9 30.9 1.0 OD1 B:ASP440 4.2 30.6 1.0 OE1 B:GLN438 4.4 24.6 1.0 CD B:GLU447 4.5 28.4 1.0 CG B:GLN438 4.6 25.6 1.0 OE2 B:GLU447 4.6 28.6 1.0 CB B:ASP440 4.9 26.0 1.0 OD2 B:ASP443 5.0 24.1 1.0

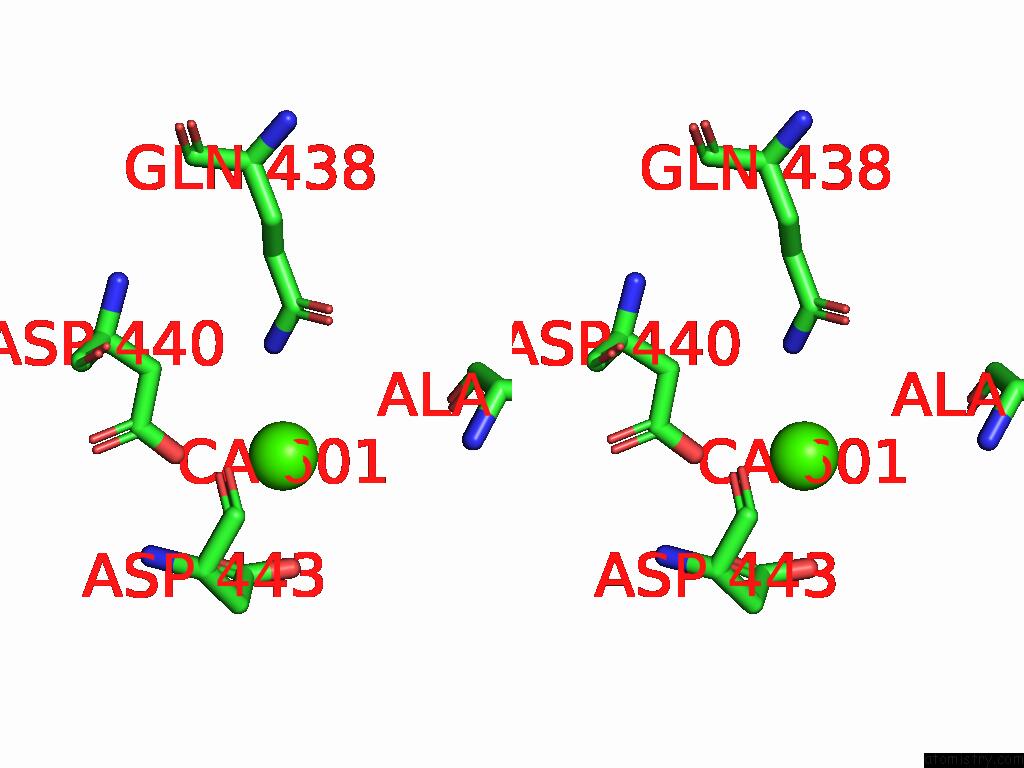

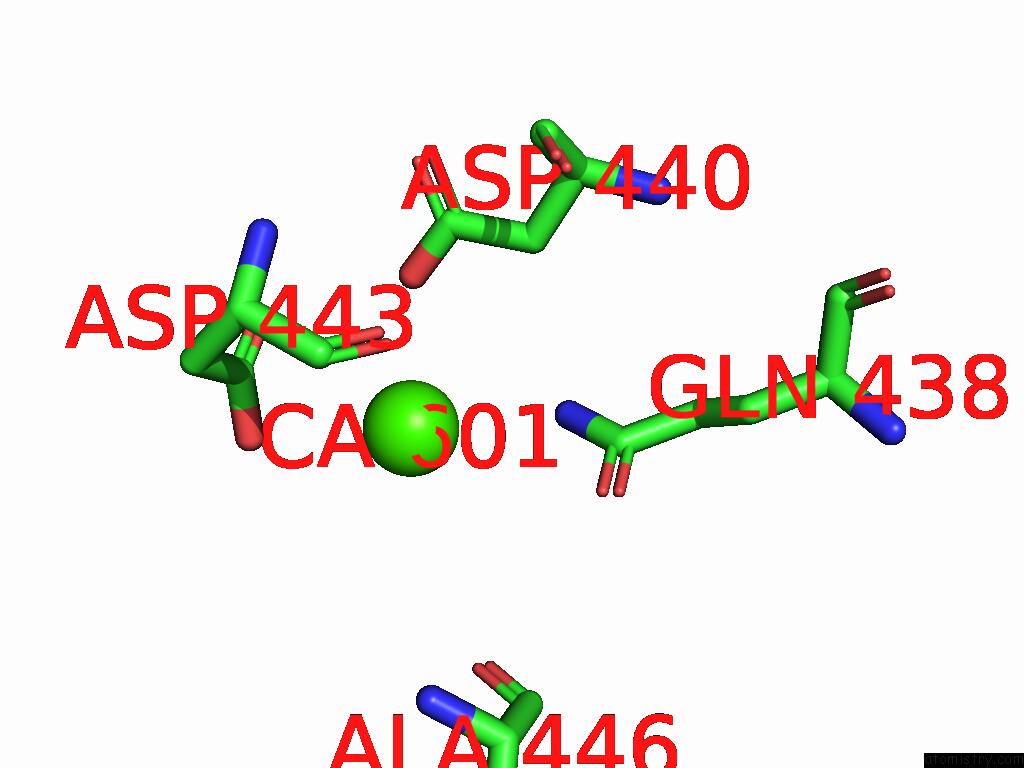

Calcium binding site 3 out of 3 in the Murine Norovirus Allosteric V339I Escape Mutant + Calcium


Mono view


Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 3 of Murine Norovirus Allosteric V339I Escape Mutant + Calcium within 5.0Å range: probe atom residue distance (Å) B Occ C:Ca601 b:82.2 occ:1.00 OD2 C:ASP440 3.2 50.6 1.0 NE2 C:GLN438 3.2 37.2 1.0 OD2 C:ASP443 3.5 44.9 1.0 OD1 C:ASP443 3.9 45.1 1.0 CG C:ASP443 4.1 44.2 1.0 CG C:ASP440 4.3 48.6 1.0 CD C:GLN438 4.4 40.2 1.0 CB C:ASP440 4.6 40.1 1.0 OE1 C:GLN438 4.8 38.6 1.0 O C:ASP443 4.8 42.3 1.0 O C:ALA446 4.9 40.1 1.0

M.B.Sherman, H.Q.Smith, F.Cox, G.Lynch, B.M.Pettitt, C.E.Wobus, T.J.Smith. Murine Norovirus Allosteric Escape Mutants Mimic Gut Activation. To Be Published.
