Calcium in PDB 9fmq: Crystal Structure of C. Merolae Lammer-Like Dual Specificity Kinase (Cmlik) Hairpin Mutant Kinase Domain

The structure of Crystal Structure of C. Merolae Lammer-Like Dual Specificity Kinase (Cmlik) Hairpin Mutant Kinase Domain, PDB code: 9fmq was solved by B.Dimos-Roehl, T.Haltenhof, A.Kotte, F.Heyd, B.Loll, with X-Ray Crystallography technique. A brief refinement statistics is given in the table below:

Resolution Low / High (Å)	42.36 / 1.77
Space group	P 21 21 21
Cell size a, b, c (Å), α, β, γ (°)	64.72, 68.67, 84.72, 90, 90, 90
R / Rfree (%)	19.2 / 23

The binding sites of Calcium atom in the Crystal Structure of C. Merolae Lammer-Like Dual Specificity Kinase (Cmlik) Hairpin Mutant Kinase Domain (pdb code 9fmq). This binding sites where shown within 5.0 Angstroms radius around Calcium atom.
In total only one binding site of Calcium was determined in the Crystal Structure of C. Merolae Lammer-Like Dual Specificity Kinase (Cmlik) Hairpin Mutant Kinase Domain, PDB code: 9fmq:

Calcium binding site 1 out of 1 in the Crystal Structure of C. Merolae Lammer-Like Dual Specificity Kinase (Cmlik) Hairpin Mutant Kinase Domain

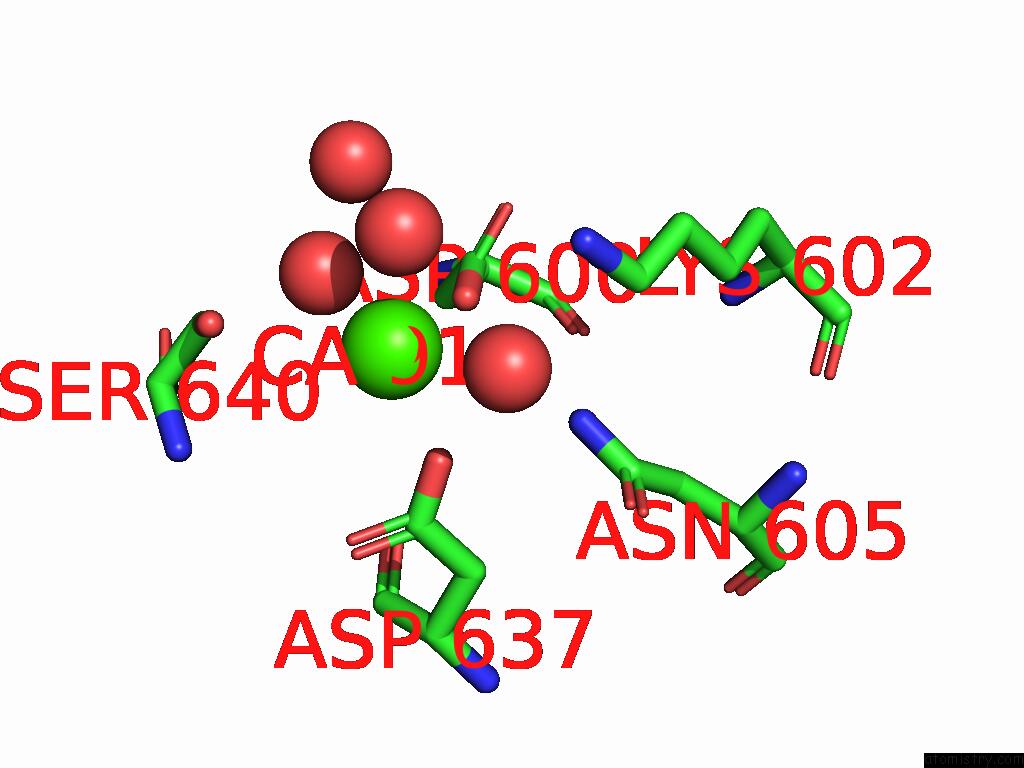

Mono view

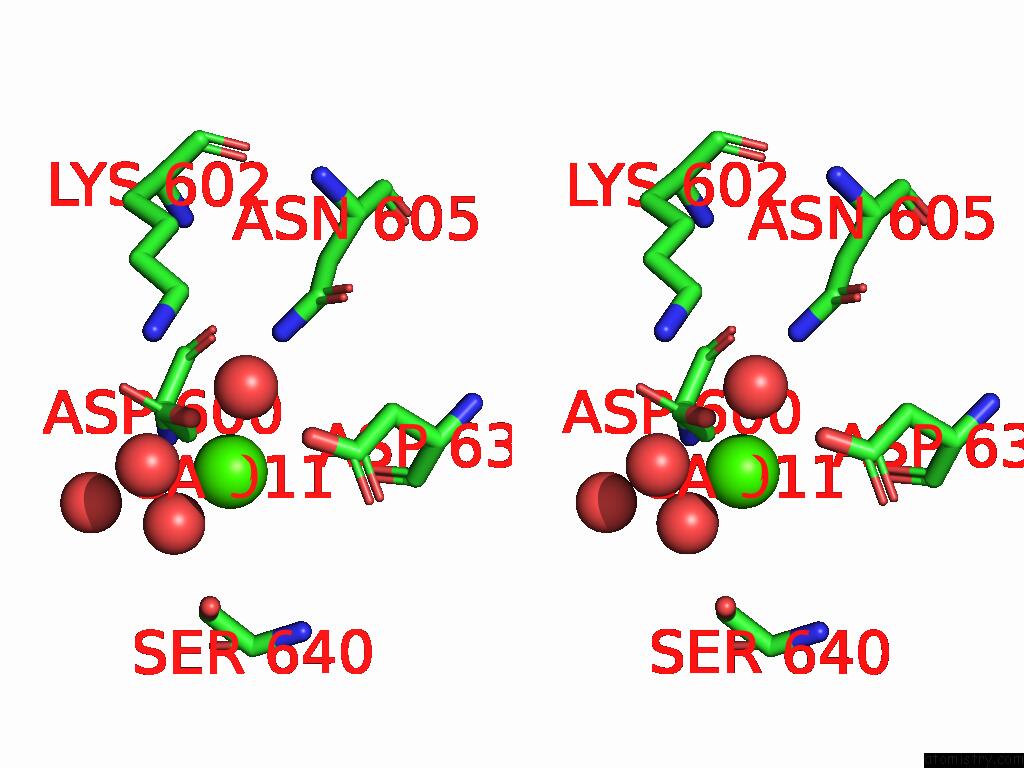

Stereo pair view

A full contact list of Calcium with other atoms in the Ca binding site number 1 of Crystal Structure of C. Merolae Lammer-Like Dual Specificity Kinase (Cmlik) Hairpin Mutant Kinase Domain within 5.0Å range: probe atom residue distance (Å) B Occ A:Ca911 b:50.1 occ:1.00 O A:HOH1024 2.1 57.4 1.0 OD2 A:ASP600 2.3 46.9 1.0 O A:HOH1073 2.3 55.2 1.0 OD2 A:ASP637 2.4 49.5 1.0 O A:HOH1045 2.5 50.6 1.0 CG A:ASP600 3.4 45.0 1.0 CG A:ASP637 3.4 50.9 1.0 OD1 A:ASP637 3.8 52.1 1.0 NZ A:LYS602 4.0 47.5 1.0 O A:HOH1074 4.0 52.6 1.0 OG A:SER640 4.1 47.9 1.0 CB A:ASP600 4.2 37.2 1.0 OD1 A:ASP600 4.3 45.9 1.0 ND2 A:ASN605 4.4 37.7 1.0 CE A:LYS602 4.7 42.8 1.0 CB A:ASP637 4.7 41.3 1.0

B.Dimos-Roehl, T.Haltenhof, A.Kotte, F.Heyd, B.Loll. Crystal Structure of C. Merolae Lammer-Like Dual Specificity Kinase Cmlik Kinase Domain To Be Published.
